Vehicle Diagnostic Tester, Connecting

Special tools and workshop equipment required

• Vehicle Diagnostic Tester

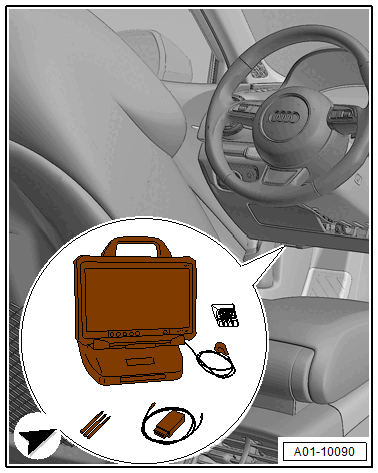

  Fig 1: Diagnostic Tester

  Courtesy of AUDI OF AMERICA, LLC
• Vehicle Communication Interface (VCI): VAS6154
• Or: Diagnosis Interface: VAS5055

Procedure:

-- Attach the connector from the Vehicle Communication Interface (VCI): VAS6154  to the diagnostic connection in the vehicle.

Fig 2: Connect Diagnostic Tester

Courtesy of AUDI OF AMERICA, LLC

-- Turn on the Vehicle Diagnostic Tester.

-- Switch the ignition on.

-- Follow the screen menu to start the desired function.
