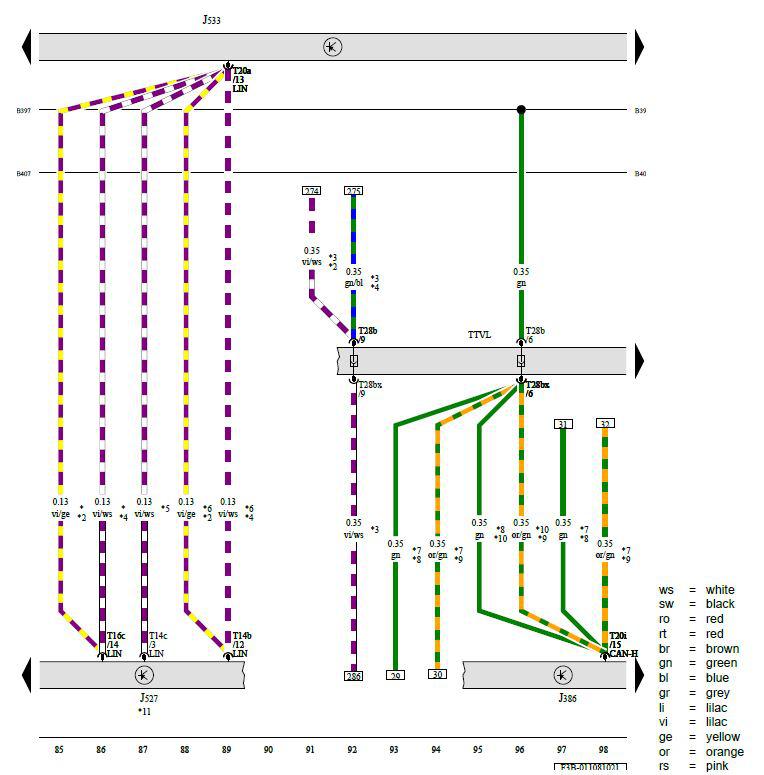

Driver Door Control Module, Steering Column Electronics Control Module, Data Bus on Board Diagnostic Interface
J386 - Driver Door Control Module
J527 - Steering Column Electronics Control Module
J533 - Data Bus on Board Diagnostic Interface
T14b - 14-Pin Connector, Black
T14c - 14-Pin Connector, Brown
T16c - 16-Pin Connector, Black
T20a - 20-Pin Connector, Black
T20i - 20-Pin Connector, White
T28b - 28-Pin Connector, Black
T28bx - 28-Pin Connector, Black
TTVL - Left Front Door Coupling Point
B397 - Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
* - For Vehicles Without Heated Steering Wheel
*2 - Through October 2018
*3 - For Vehicles with Ambient Lighting, Version 2
*4 - From October 2018
*5 - For USA Only
*6 - For Vehicles with Heated Steering Wheel
*7 - For RHD Vehicles
*8 - From August 2019
*9 - Through July 2019
*10 - For LHD Vehicles
*11 - Refer to Applicable Wiring Diagram for Multifunction Steering Wheel
