Vehicle, Lifting
CAUTION:
Using the hoist incorrectly can damage the vehicle.
- Do not exceed the permitted load rating of the hoist.
- Only lift the vehicle at the mounting points shown.
- Position the mounting plate so that it is aligned centrally under the mounting points.
- Maintain distance between the low-lying vehicle components and the hoist.
Procedure:

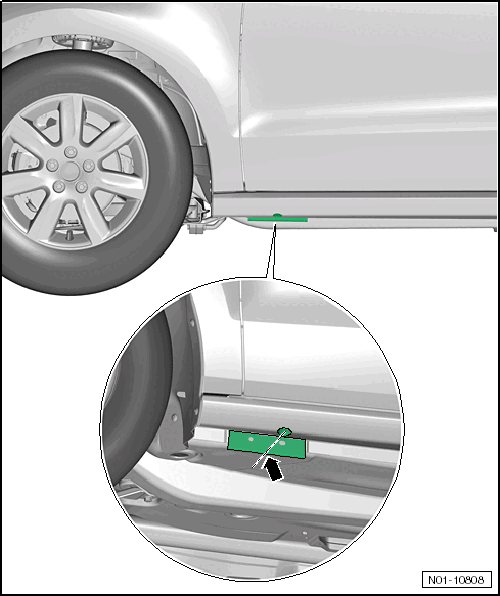

-- Front: position the hoist mounting plate on the side sill mounting point -arrow-.

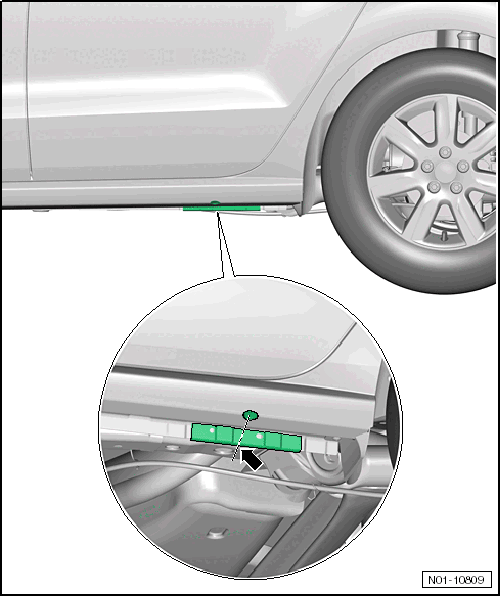

-- Rear: position the hoist mounting plate on the side sill mounting point -arrow-.
NOTE:
The impressions on the side sill trim panel mark the positions of the mounting points.
