A/C System Particulate Matter Concentration Sensor -G930-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

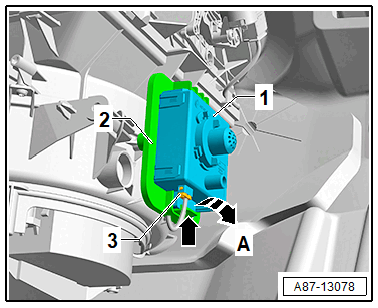

-- Disconnect the connector -3-.
-- Release the catch -arrow- and disengage the A/C System Particulate Matter Concentration Sensor -G930- -1- in the direction of -arrow A-.
Bracket Removal:
-- If equipped, remove the Access/Start Authorization Control Module -J518-. Refer to Access/Start Authorization Control Module -J518-, REMOVING AND INSTALLING .

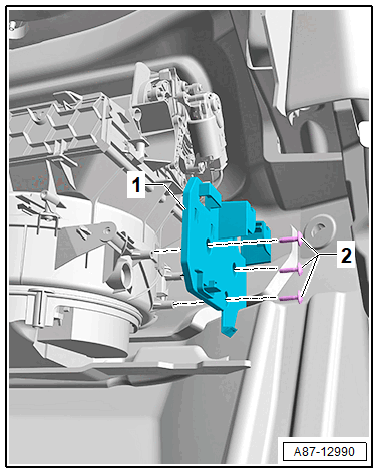

-- Remove the bolts -2- and the bracket -1-.
