Window Guide, Removing And Installing: Installing
Install in reverse order of removal and note the following:

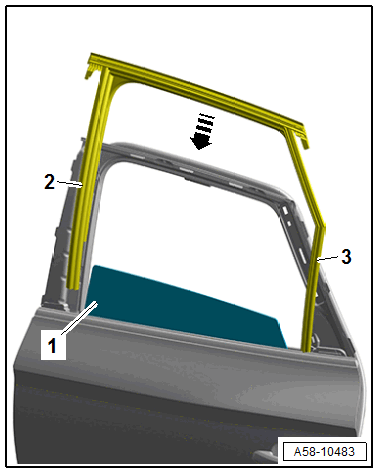

-- Move the door window -1- into the position "half open".
For an easier installation, spray the window guides with soapy water, for example.
-- Insert the window guides -2 and 3- in the guide rail -arrow-.
-- Install the window guide on the door flange in the sequence -1 through 5-.
| Step | |
|---|---|
| 1. | -- Position the upper window guide corner -A- on the C-pillar door flange and align it with the C-pillar trim by installing the C-pillar trim without using screws. Refer to DOOR C-PILLAR TRIM, REMOVING AND INSTALLING . |
| 2. | -- Position the upper window guide corner -B- on the B-pillar door flange and align it with the B-pillar trim by installing the B-pillar trim without using screws. Refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, REAR . |
| 3. | -- Push on the upper window guide -C-, working from the outside toward the inside. |
| 4. | -- Insert the window guide -D- completely in the B-pillar guide rail. |
| 5. | -- Insert the window guide -E- completely in the C-pillar guide rail. |
