Overview - Rear Side Window

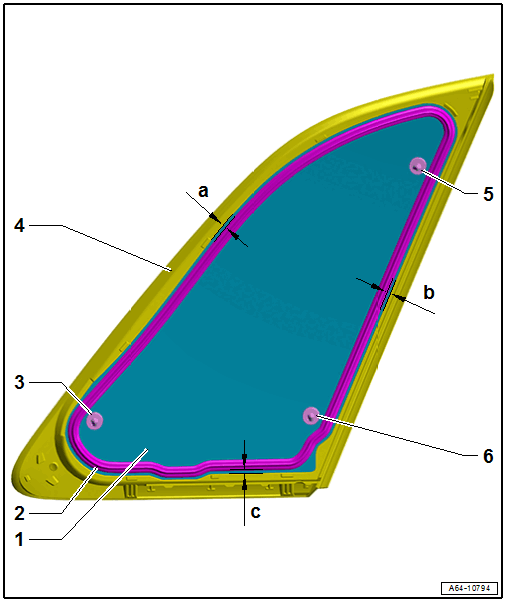

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Rear Side Window
- Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- Adhesive Bead
- Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Note the different distances to the window edge
- Dimension -a- = 7.5 mm
- Dimension -b- = 6.5 mm
- Dimension -c- = 7.5 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Locating Pin
- Is cut through when removing the window
- Molding
- On the side window frame
- Must not be damaged in the visible area
- Locating Pin
- Is cut through when removing the window
- Locating Pin
- Is cut through when removing the window
