Overview - Window Guides And Window Shaft Strips

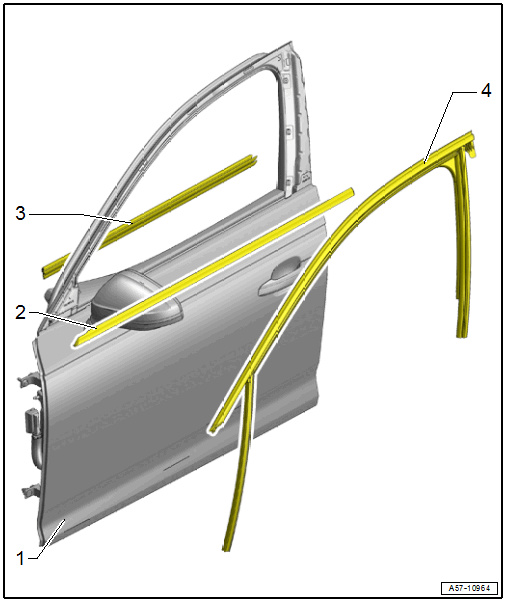

Fig 1: Exploded View Of Window Guides And Window Shaft Strips

Courtesy of AUDI OF AMERICA, LLC

1. Door
2. Outer Window Shaft Strip
   • Removing and Installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
3. Inner Window Shaft Strip
   • Removing and Installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
4. Window Guide
   • Removing and Installing. Refer to WINDOW GUIDE, REMOVING AND INSTALLING .
