Brake Pedal Switch, Abs Control Module, Fuel Pump Control Module, Engine/Motor Control Module, Exhaust Door Control Unit 2: Notes

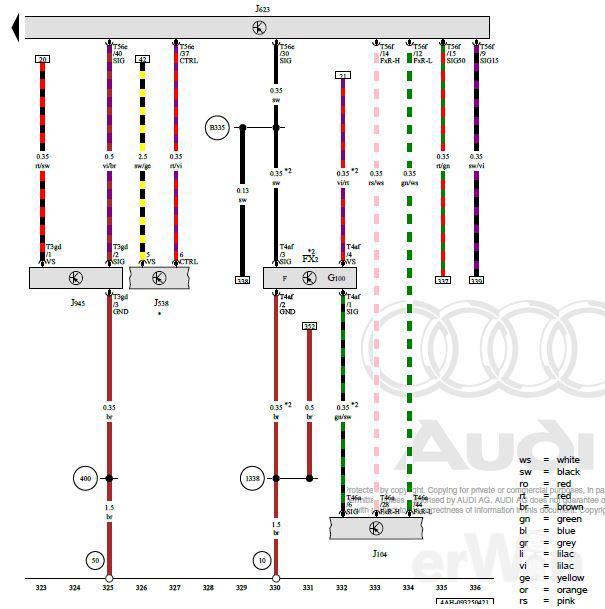

G00604512

Courtesy of AUDI OF AMERICA, LLC
