Engine, Supporting In Installation Position
WARNING: This page is about a different car, the 2022 Audi S5 Sportback, 2021 Audi S5 Sportback, and 2020 Audi S5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Engine Support Bridge: 10-222A
- Engine Support Bridge - Spindle: 10-222A/11
- Engine Support - Supplement Kit: T40093A
Procedure
-- Install the engine cover and heat shield. Refer to ENGINE COVER, REMOVING AND INSTALLING [CWGD] .

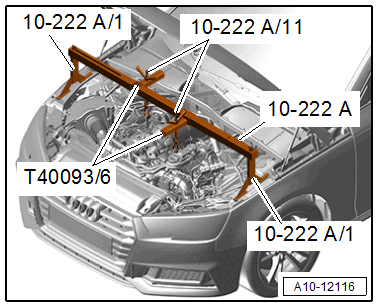

-- Place the : 10-222A on the left and right side of the longitudinal member.
-- Engage the : 10-222A/11 at the left and right on the engine lifting eyes.
-- Tension the engine with the spindles slightly until the engine mount is not under a load.
Assembling
Assemble in the reverse order of removal. Note the following:
-- Install the heat shield and engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING [CWGD] .
