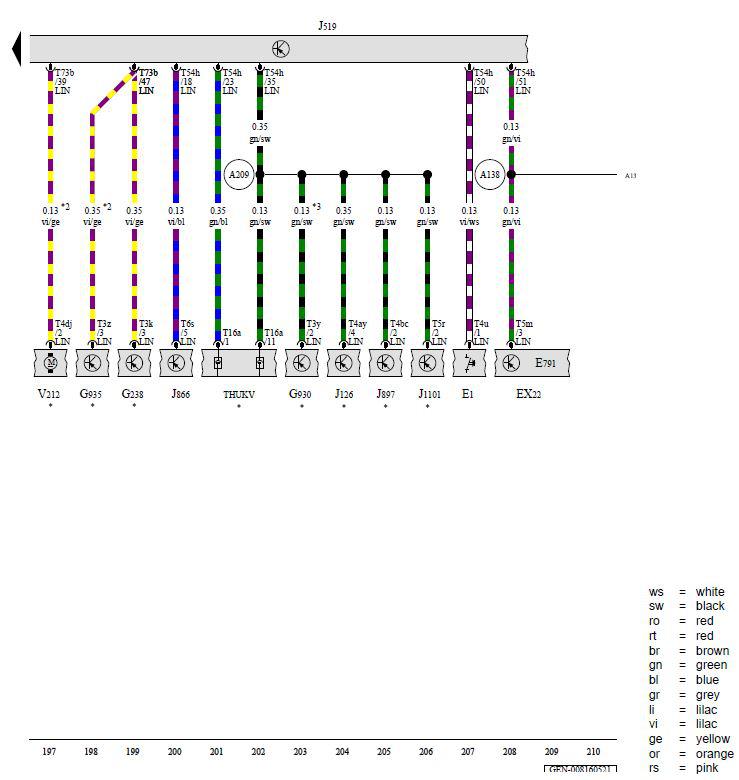

Light Switch, Air Quality Sensor, Fresh Air Blower Control Module, Vehicle Electrical System Control Module, Power Adjustable Steering Column Control Module, Ionizer Control Module, Fragrance Diffuser System Control Module
E1 - Light Switch
EX22 - Center Instrument Panel Switch Module
E791 - Control Unit 1 for Driving and Convenience Functions
G238 - Air Quality Sensor
G930 - A/C System Particulate Matter Concentration Sensor
G935 - Exterior Air Quality and Humidity Sensor
J126 - Fresh Air Blower Control Module
J519 - Vehicle Electrical System Control Module
J866 - Power Adjustable Steering Column Control Module
J897 - Ionizer Control Module
J1101 - Fragrance Diffuser System Control Module
T3k - 3-Pin Connector, Black
T3y - 3-Pin Connector, Blue
T3z - 3-Pin Connector, Brown
T4ay - 4-Pin Connector, Black
T4bc - 4-Pin Connector, Black
T4dj - 4-Pin Connector, Black
T4u - 4-Pin Connector, Red
T5m - 5-Pin Connector, Brown
T5r - 5-Pin Connector, Black
T6s - 6-Pin Connector, Brown
T16a - 16-Pin Connector, Black
T54h - 54-Pin Connector, Black
T73b - 73-Pin Connector, Black
THUKV - Front Heating and Air Conditioning Coupling Point
V212 - Left B-Pillar/Footwell Shut-Off Door Motor
A138 - Connection 2 (in Instrument Panel Wiring Harness)
A209 - LIN Bus Connection 1 (in Instrument Panel Wiring Harness)
* - Refer to Applicable A/C System Wiring Diagram
*2 - Climate Control, Comfort Climatronic
*3 - Depending on Equipment
