Garage Door Opener Control Module, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

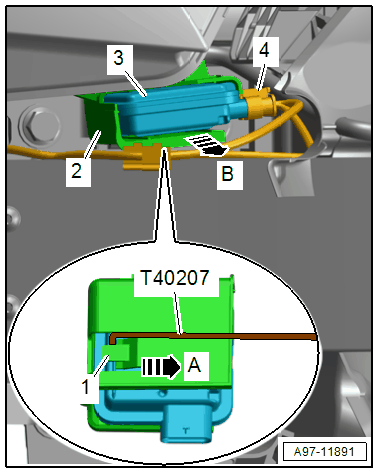

-- Release the tab -1- using the :T40207 in the direction of the -arrow A-.
-- Remove the control module -3- from the mount -2- in the direction of the -arrow B-.
-- Disconnect the connector -4-.
