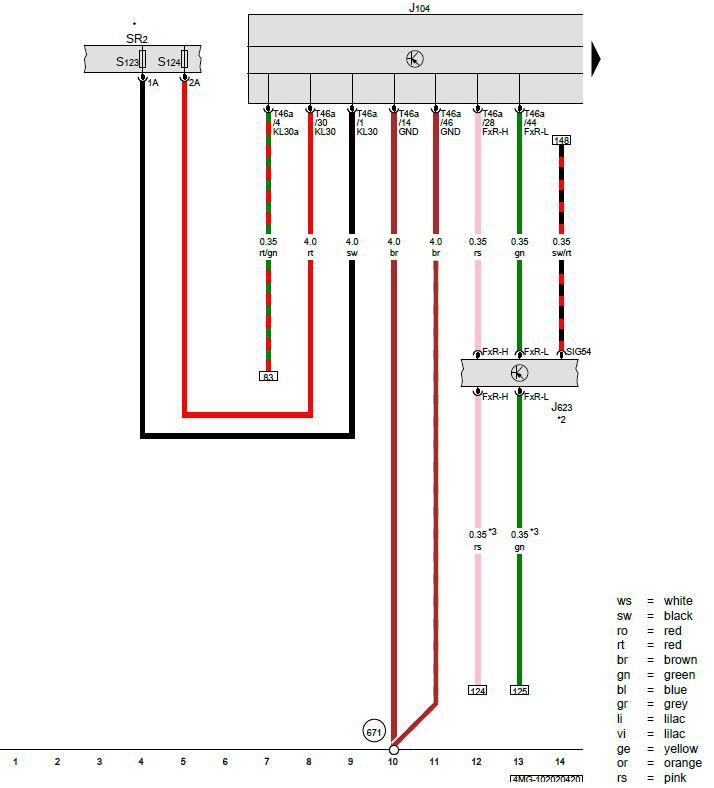

ABS Control Module, Engine/Motor Control Module, Relay and Fuse Panel 2, ABS Control Module Fuse 2

Courtesy of AUDI OF AMERICA, LLC

J104 -  ABS Control Module

J623 -  Engine/Motor Control Module

SR2 -  Relay and Fuse Panel 2

S123 -  ABS Control Module Fuse 1

S124 -  ABS Control Module Fuse 2

T46a -  46-Pin Connector, Black

671 -  Ground Connection 1 on Left Front Longitudinal Member

* -  Refer to Applicable Wiring Diagram for Fuse Positions

*2 -  Refer to Applicable Engine Wiring Diagram

*3 -  For Vehicles with Hybrid Drive
