Steering Column, Removing And Installing: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

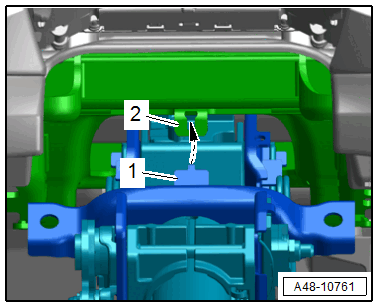

-- Bring the steering column into the installation position by engaging the mounting hooks -1- on the crossmember -2- -arrow-.

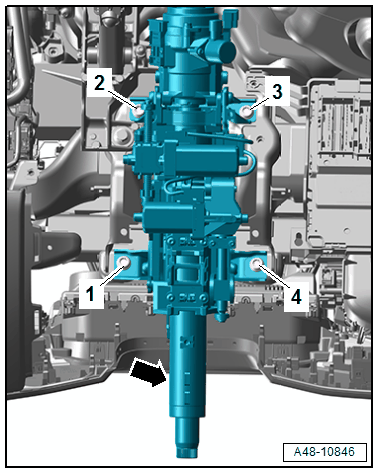

-- Install the bolts loosely and then tighten. Refer to Figure.

-- Install the steering intermediate shaft. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

• Readapting the end position of the steering gear. Refer to STEERING GEAR END POSITIONS, ADAPTING .
• Calibrate the Steering Angle Sensor -G85-. Refer to Steering Angle Sensor -G85- BASIC SETTING .
• If the steering column is replaced, activate the Power Adjustable Steering Column Control Module -J866-. Refer to Power Adjustable Steering Column Control Module -J866-, REMOVING AND INSTALLING .
