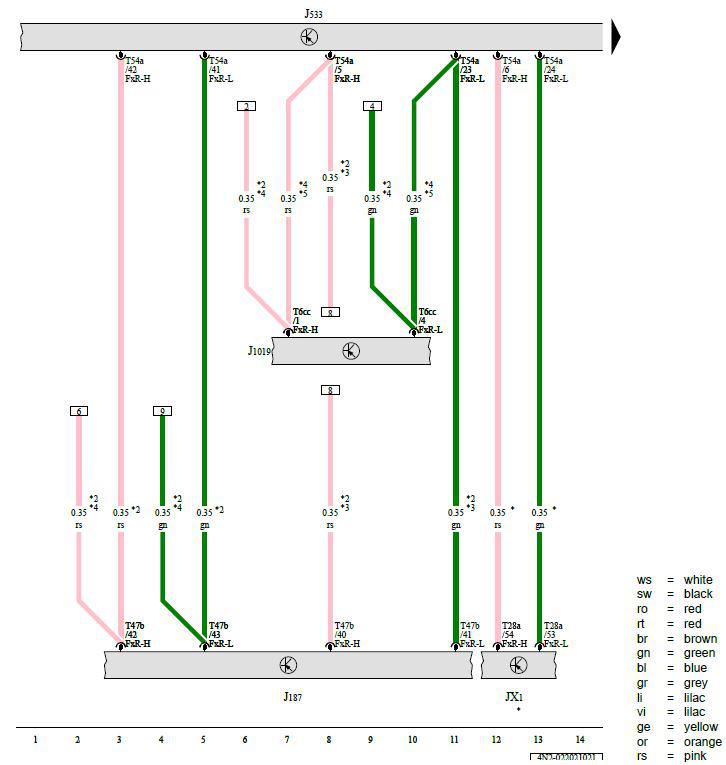

Electric Drive Power and Control Electronics, Differential Lock Control Module, Data Bus on Board Diagnostic Interface, Rear Axle Steering Control Module
JX1 - Electric Drive Power and Control Electronics
J187 - Differential Lock Control Module
J533 - Data Bus on Board Diagnostic Interface
J1019 - Rear Axle Steering Control Module
T6cc - 6-Pin Connector, Black
T28a - 28-Pin Connector, Black
T47b - 47-Pin Connector, Black
T54a - 54-Pin Connector, Black
* - For Vehicles with Hybrid Drive
*2 - For AWD Vehicles
*3 - For Vehicles Without Rear Axle Steering
*4 - For Vehicles with Rear Axle Steering
*5 - For Vehicles Without All-Wheel Drive
