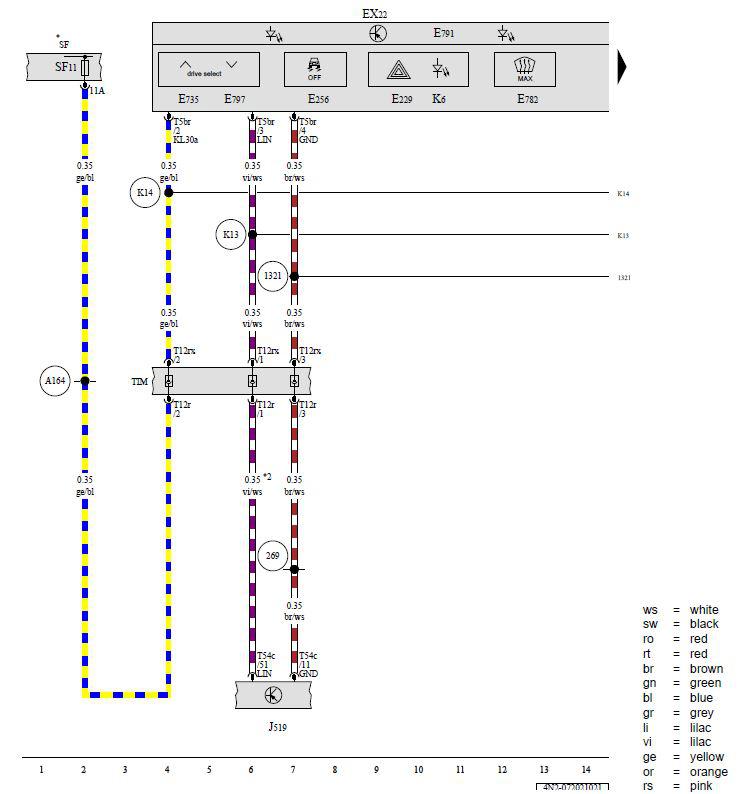

Center Instrument Panel Switch Module, Control Unit 1 for Driving and Convenience Functions, Vehicle Electrical System Control Module
EX22 - Center Instrument Panel Switch Module
E229 - Emergency Flasher Button
E256 - ASR/ESP Button
E735 - Driving Profile Selection Button
E782 - Defrost Button
E791 - Control Unit 1 for Driving and Convenience Functions
E797 - Driving Profile Selection Button 2
J519 - Vehicle Electrical System Control Module
K6 - Emergency Flasher Indicator Lamp
SF - Fuse Panel F, Instrument Panel Fuse Panel, Left
SF11 - Fuse 11 (On Fuse Panel F)
T5br - 5-Pin Connector, Brown
T12r - 12-Pin Connector, Black
T12rx - 12-Pin Connector, Black
T54c - 54-Pin Connector, Black
TIM - Coupling Point in Interior, Center
269 - Sensor Ground Connection 1 (in Instrument Panel Wiring Harness)
1321 - Ground Connection 2 (in Center Console Wiring Harness)
A164 - Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)
K13 - LIN Bus Connection 2 (in Center Console Wiring Harness)
K14 - Connection (30) (in Center Console Wiring Harness)
* - Refer to Applicable Wiring Diagram for Fuse Positions
*2 - Diameter Depends on Equipment
