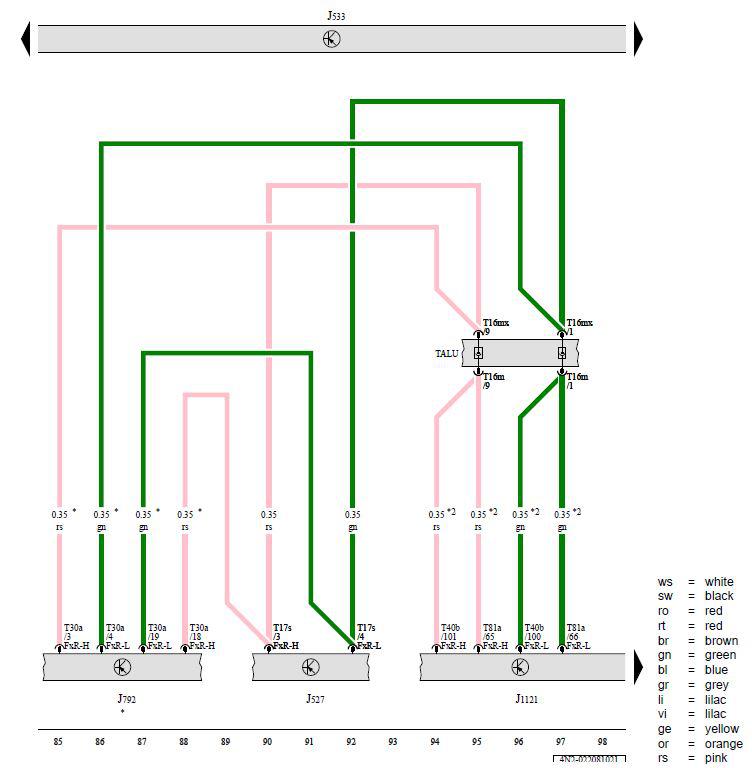

Steering Column Electronics Control Module, Data Bus on Board Diagnostic Interface, Active Steering Control Module, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J527 -  Steering Column Electronics Control Module

J533 -  Data Bus on Board Diagnostic Interface

J792 -  Active Steering Control Module

J1121 -  Driver Assistance Systems Control Module

T16m -  16-Pin Connector, Black

T16mx -  16-Pin Connector, Black

T17s -  17-Pin Connector, Yellow

T30a -  30-Pin Connector, Black

T40b -  40-Pin Connector, Black

T81a -  81-Pin Connector, Black

TALU -  Coupling Point on Left A-Pillar, Bottom

* -  For Vehicles with Active Steering

*2 -  Depending on Equipment
