Heating Element Control Module 1, 2 And 3 - Z163- / -Z164- / -Z165- /Seat Heating Control Module -J882-, Removing And Installing: Removing

-- Remove the sill panel strip. Refer to SILL PANEL, REMOVING AND INSTALLING .

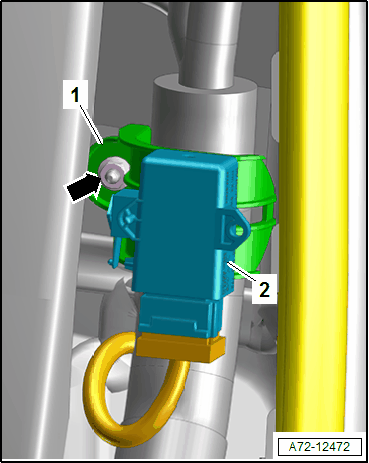

-- Remove the nut -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the control module -2- with bracket -1-.

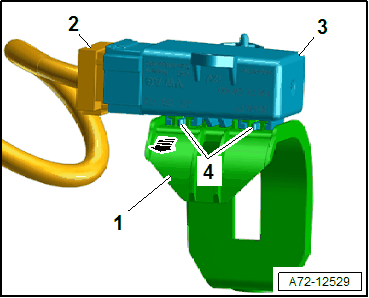

-- Unclip -arrow- the bracket -1- from the control module -3- by releasing the tab -4- using a small flat-head screwdriver.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- and remove the seat heating control module.
