Instrument Cluster Trim, Removing And Installing: Removing

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Remove the upper steering column trim panel. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

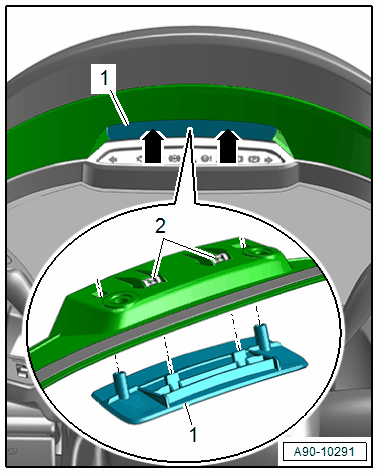

-- Using the narrow medium hard clip release lever pry up the cover -1- from the clip -2- to do so insert the clip release lever between the instrument cluster trim and the cover -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument cluster trim -1-.

-- Disconnect the connector.
