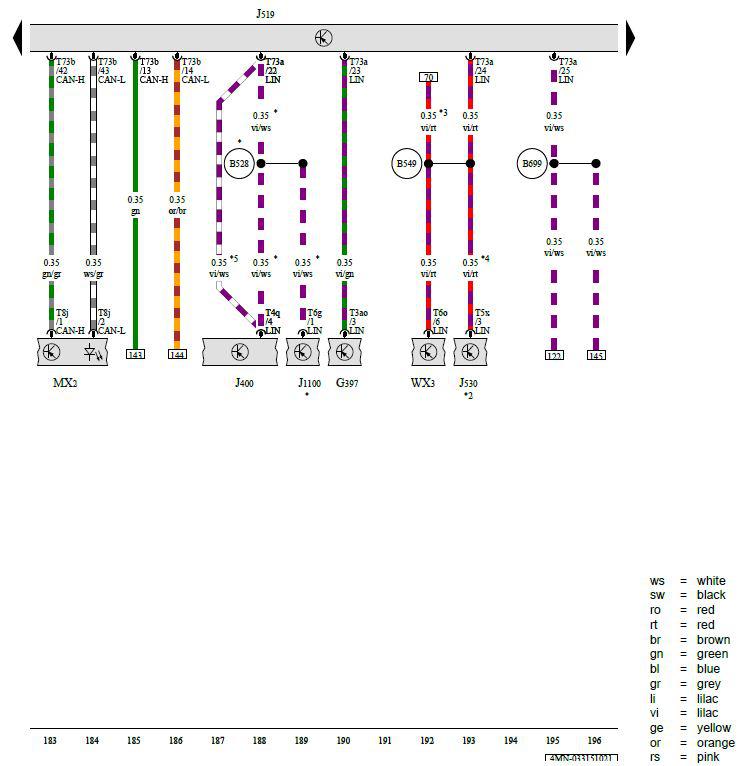

Rain/Light Recognition Sensor, Wiper Motor Control Module, Vehicle Electrical System Control Module, Garage Door Opener Control Module, Windshield Washer Pump Control Module, Right Front Headlamp, Front Roof Module
G397 - Rain/Light Recognition Sensor
J400 - Wiper Motor Control Module
J519 - Vehicle Electrical System Control Module
J530 - Garage Door Opener Control Module
J1100 - Windshield Washer Pump Control Module
MX2 - Right Front Headlamp
T3ao - 3-Pin Connector, Black
T4q - 4-Pin Connector, Black
T5x - 5-Pin Connector, Black
T6g - 6-Pin Connector, Black
T6o - 6-Pin Connector, Black
T8j - 8-Pin Connector, Black
T73a - 73-Pin Connector, Black, Black
T73b - 73-Pin Connector, Black, Naturally Cloudy
WX3 - Front Roof Module
B528 - LIN Bus Connection 1 (in Main Wiring Harness)
B549 - LIN Bus Connection 2 (in Main Wiring Harness)
B699 - LIN Bus Connection 4 (in Main Wiring Harness)
* - For Vehicles with Adaptive Cruise Control (ACC)
*2 - Refer to Applicable Wiring Diagram for the Garage Door Opener
*3 - For Vehicles with Automatic Dimming Interior Rearview Mirror
*4 - For Vehicles with Garage Door Opener
*5 - For Vehicles Without Adaptive Cruise Control (ACC)
