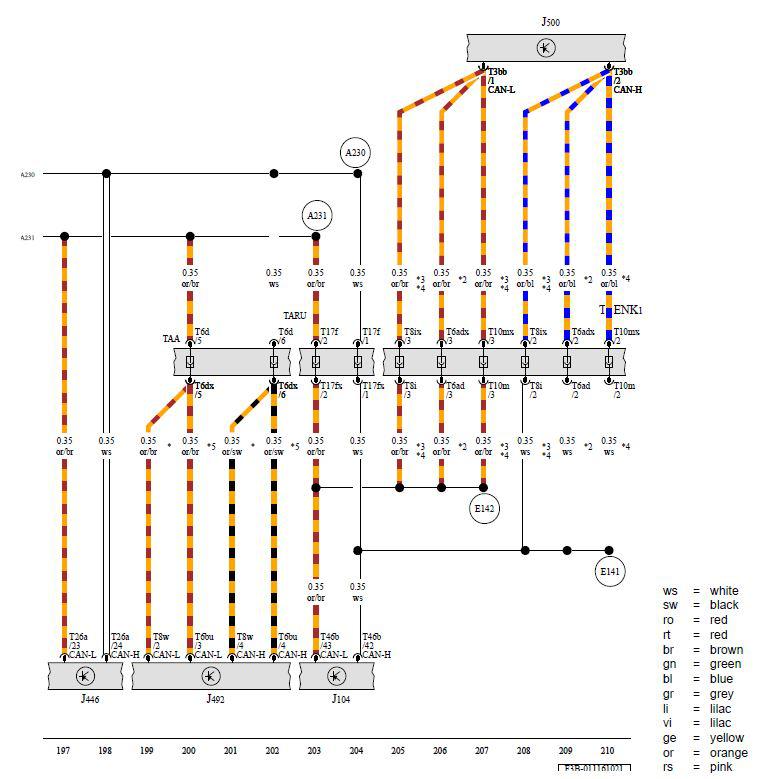

ABS Control Module, Parking Aid Control Module, All- Wheel Drive Control Module, Power Steering Control Module
J104 - ABS Control Module
J446 - Parking Aid Control Module
J492 - All-Wheel Drive Control Module
J500 - Power Steering Control Module
T3bb - 3-Pin Connector, Black
T6ad - 6-Pin Connector, Black
T6adx - 6-Pin Connector, Black
T6bu - 6-Pin Connector, Black
T6d - 6-Pin Connector, Black
T6dx - 6-Pin Connector, Black
T8i - 8-Pin Connector, Black
T8ix - 8-Pin Connector, Black
T8w - 8-Pin Connector, Black
T10m - 10-Pin Connector, Black
T10mx - 10-Pin Connector, Black
T17f - 17-Pin Connector, Black
T17fx - 17-Pin Connector, Black
T26a - 26-Pin Connector, Black
T46b - 46-Pin Connector, Black
TAA - All-Wheel Drive Coupling Point
TARU - Coupling Point on Right A-Pillar, Bottom
TLENK1 - Steering Coupling Point 1
A230 - Suspension/Instrument Cluster CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A231 - Suspension/Instrument Cluster CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
E141 - Connection (CAN Bus Suspension Sensors High) (in Engine/Motor Compartment Wiring Harness)
E142 - Connection (CAN Bus Suspension Sensors Low) (in Engine/Motor Compartment Wiring Harness)
* - Version 1
*2 - For Vehicles with Gasoline Engine
*3 - For Vehicles with Diesel Engine
*4 - Depending on Equipment
*5 - Version 2
