10.2 Component Location Overview - Peripheral Camera
NOTE:
The component locations are shown on a Coupe. The component locations for the other vehicle models are the same.

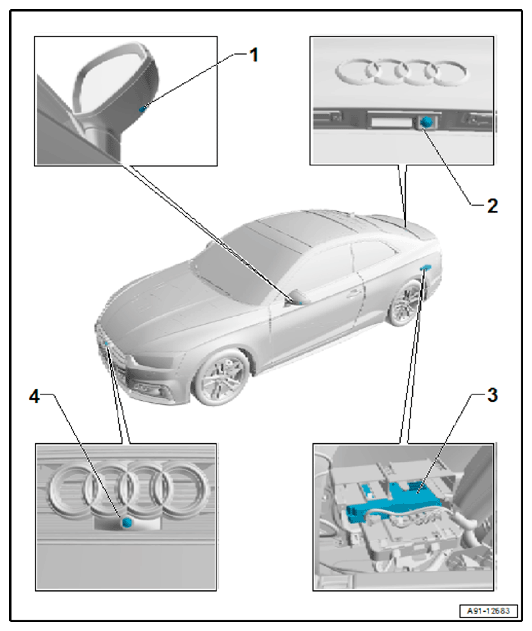

- Right Peripheral Camera -R245-/Left Peripheral Camera - R244-
- Bracket screws: 2 Nm
- Removing and Installing. Refer to 10.6 Right and Left Peripheral Cameras -R244-/-R245-, Removing and Installing.
- Calibrating. Refer to 10.7 Peripheral Camera, Calibrating.
- Rear Peripheral Camera - R246-
- Cabriolet bracket bolt/nut: 4 Nm
- Calibrating. Refer to 10.7 Peripheral Camera, Calibrating.
- Removing and Installing, Coupe/Sportback. Refer to 10.4 Rear Peripheral Camera - R246-, Removing and Installing
- Removing and Installing, Cabriolet. Refer to 10.4.2 Rear Peripheral Camera - R246-, Removing And Installing, Cabriolet
- Peripheral Camera Control Module - J928-
- Calibrating. Refer to 10.7 Peripheral Camera, Calibrating
- Behind the left luggage compartment side trim panel
- Wiring diagrams, Troubleshooting & Component locations
- Removing and Installing. Refer to 10.3 Peripheral Camera Control Module -J928-, Removing And Installing
- Front Peripheral Camera - R243-
- Bolts: 3 Nm
- Calibrating. Refer to 10.7 Peripheral Camera, Calibrating
- Removing and Installing. Refer to 10.5 Front Peripheral Camera - R243-, Removing And Installing
