Special Tools

WARNING: This page is about a different car, the 2020 Audi A3, 2019 Audi A3, and 2018 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Support Bridge:T10323 for AWD vehicles

Fig 1: Identifying Support Bridge
Courtesy of AUDI OF AMERICA, LLC
Engine/Gearbox Jack - Engine Support:T10359A

Fig 2: Identifying Engine/Gearbox Jack Engine Support
Courtesy of AUDI OF AMERICA, LLC
Engine Support - Joint Fixture:T40091/3 from the Engine Support - Basic Set:T40091

Fig 3: Engine Support - Basic Set T40091
Courtesy of AUDI OF AMERICA, LLC

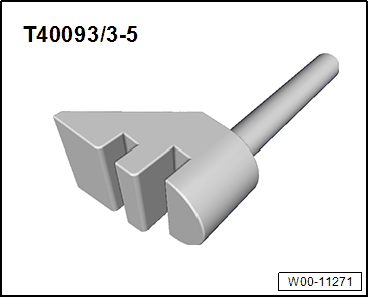

Adapter:T40093/3-5 from the Engine Support - Supplement Kit:T40093A

Courtesy of AUDI OF AMERICA, LLC
Engine Support Bracket - Square Pipe:T40150/4 from the Engine Support Bracket:T40150

Courtesy of AUDI OF AMERICA, LLC
Engine Bung Set:VAS6122

Fig 4: Engine Bung Set
Courtesy of AUDI OF AMERICA, LLC
Coolant Collection System:VAS5014 or Shop Crane - Drip Tray:VAS6208

Fig 5: Identifying Drip Tray
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers:VAS6362

Fig 6: Hose Clip Pliers
Courtesy of AUDI OF AMERICA, LLC
Engine and Gearbox Jack:VAS6931

Fig 7: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of AUDI OF AMERICA, LLC
Engine Support Bridge:10-222A

Fig 8: Engine Support Bridge 10-222A
Courtesy of AUDI OF AMERICA, LLC

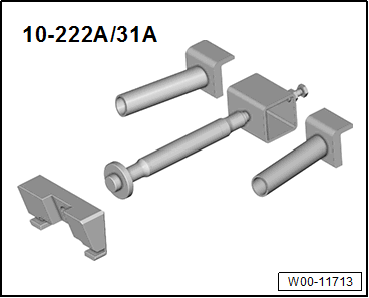

Engine Support:10-222A/31A

Courtesy of AUDI OF AMERICA, LLC
Pry Lever:80-200

Fig 9: Identifying Pry Lever
Courtesy of AUDI OF AMERICA, LLC
Engine Sling - Engine Bracket:2024A/1 for the Engine Sling:2024A

Fig 10: Engine Sling - Engine Bracket
Courtesy of AUDI OF AMERICA, LLC
Securing element from the Transmission Support:3282

Fig 11: Identifying Transmission Support 3282
Courtesy of AUDI OF AMERICA, LLC
Not shown:
Commercially available Step Ladder
Protective Eyewear
Safety Gloves
