Engine, Supporting In Installation Position
WARNING: This page is about a different car, the 2020 Audi A3, 2019 Audi A3, and 2018 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Engine Support Bridge:10-222A
- Engine Support Bridge - Engine Bracket:10-222A/1A
- Engine Support - Bracket w/Spindle and Hook:10-222A/10
Procedure
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

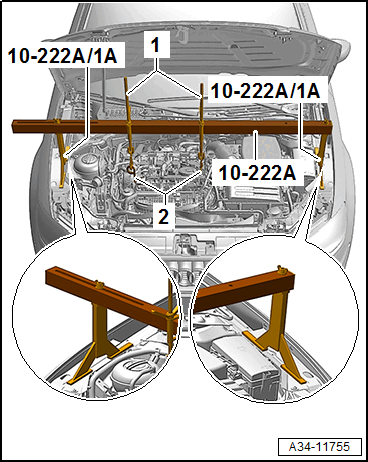

-- Position the :10-222A with the :10-222A/10 -1- and the :10-222A/1A as shown on the right and left fender bolting edge.
-- Engage the carabiner hook -2- from the :10-222A/10 -1- on the engine lifting eyes.
-- Slightly pretension the engine/transmission assembly with the spindle, do not lift.
Assembling
Assemble in the reverse order of removal. Note the following:
-- Remove the :10-222A from the engine.
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
