Transmission, Transporting
Special tools and workshop equipment required
- Transmission Support Jig: 3336
- Shop Crane: VAS6100
Procedure

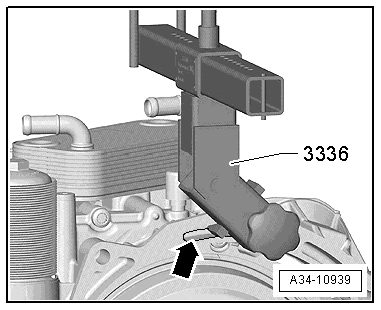

-- Attach the : 3336 on the transmission. At the same time lock in the recess in the transmission -arrow-.

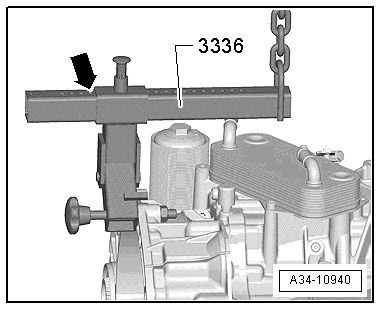

-- Move the support arm on the sliding bar using the locking bolt -arrow-.
- Quantity of viable holes (without bevel box) = 5
- Quantity of viable holes (with bevel box) = 3
-- Remove the transmission with the removed : 3336 with the : VAS6100 .
