Camshaft Position Sensor 3 -G300-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2020 Audi A3, 2019 Audi A3, and 2018 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
After removing or replacing the camshaft position sensor the adaptation values for the chain length must be adapted again.
-- Connect the Vehicle Diagnostic Tester.
-- Select Diagnostic operating mode and Start diagnostics .
-- Select the Select individual test tab and select the following tree structure consecutively:
- Drivetrain
- Select the engine code and engine
- 01 - OBD-capable systems .
- 01 - Engine Electronics
- 01 - Engine electronics, functions
- 01 - Chain length diagnostic adaptation

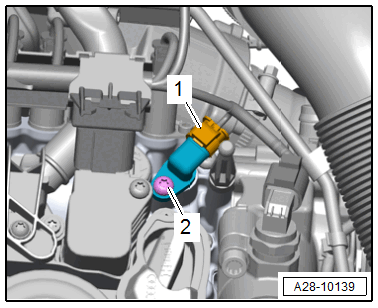

-- Disconnect the connector -1-.
-- Remove the bolt -2- and then remove the Camshaft Position Sensor 3 -G300-.
