Camshaft Position Sensor -G40-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2020 Audi A3, 2019 Audi A3, and 2018 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .

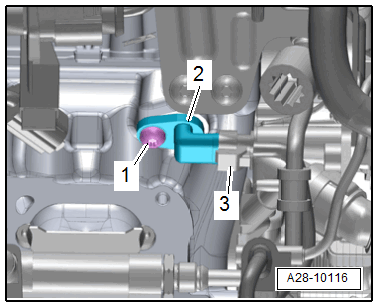

-- Disconnect the connector -3-.
-- Remove the bolt -1-, and remove the Camshaft Position Sensor -G40- -2-.
