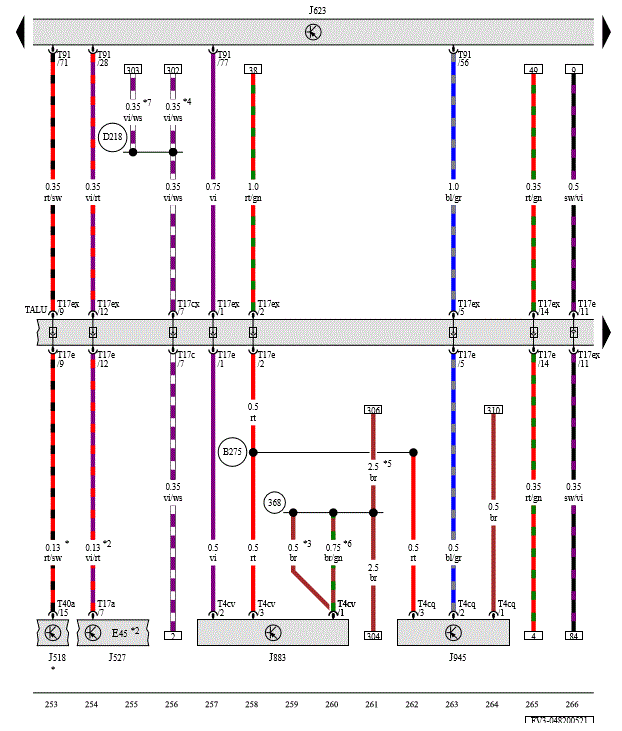

Engine/Motor Control Module, Exhaust Door Control Unit, Exhaust Door Control Unit 2: Notes

G00589474

Courtesy of AUDI OF AMERICA, LLC
