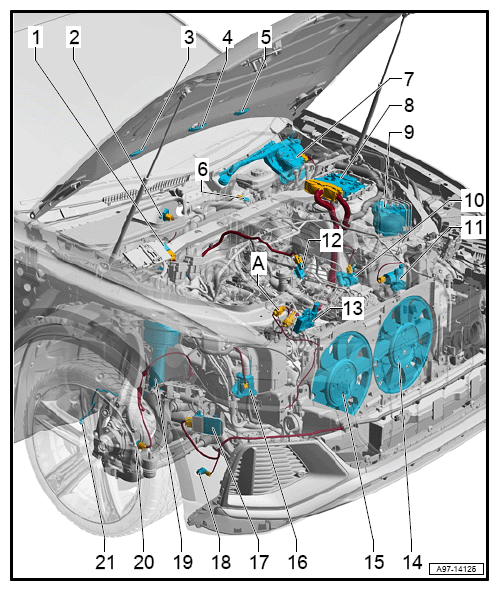

Vehicle Front, Right

1. A  - 3-Pin Connector -T3AE-, Yellow/3-Pin Connector -T3AEX-, Yellow
2. 1  - Suppressor -C24-
3. 2  - Air Quality Sensor -G238-
   • For Models With A/C System 9AD/KH5
4. 2  - Exterior Air Quality and Humidity Sensor -G935-
   • Models with A/C 9AQ
5. 3  - Right Washer Nozzle Heater -Z21-
6. 4  - Center Washer Nozzle Heater -Z114-
7. 5  - Left Washer Nozzle Heater -Z20-
8. 6  - Vacuum Sensor -G608-
9. 7  - Wiper Motor Control Module -J400-
10. 8  - Engine Control Module (ECM) -J623-
11. 9  - ABS Control Module -J104-
12. 10  - Transmission Oil Cooling Valve -N509-
13. 11  - Solenoid Valve 8 -N186-
14. 12  - Air Filter Bypass Flap Valve -N275-
15. 13  - Hood contact switch 2 -F329-
16. 14  - Coolant fan control module -J293-
17. 15  - Coolant Fan Control (FC) Control Module 2 -J671-
18. 16  - Recirculation Pump -V55-
19. 17  - Control Module for Right Front Object Detection Radar Sensor -J1089-
20. 18  - Right Front Parallel Parking Assistance Sensor, right model side -G569-
21. 19  - Right Front Dampening Adjustment Valve -N337-
22. 20  - Right Front Wheel Speed Sensor -G45-
23. 21  - Right Front Brake Pad Wear Sensor -G35-

Courtesy of AUDI OF AMERICA, LLC
