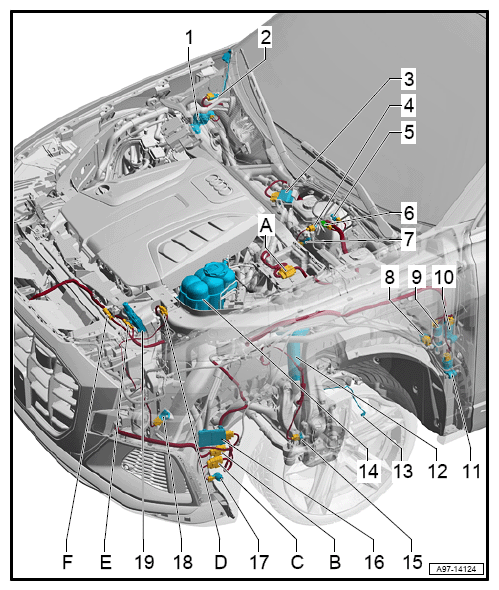

Vehicle Front, Left

1. 14-Pin Connector -T14I-, Black/14-Pin Connector -T14IX-, Black
2. 14-Pin Connector -T14C-, Brown/14-Pin Connector -T14CX-, Brown
3. 14-Pin Connector -T14D-, Black/14-Pin Connector -T14DX-, Black
4. 3-Pin Connector -T3I-, Yellow/3-Pin Connector -T3IX-, Yellow
5. Double Connector -T2AM-, Blue/Double Connector -T2AMX-, Blue
6. 5-Pin Connector -T5C-, Black/5-Pin Connector -T5CX-, Black

1. Alarm Horn -H12-
2. Windshield Defogger -Z2-
3. Windshield Washer Pump Control Module -J1100-
4. Brake Fluid Level Warning Switch -F34-
5. Thermal Resistor 1 in Driver Side Windshield Wiper Arm -Z139-
6. Thermal Resistor 1 in Front Passenger Side Windshield Wiper Arm -Z141-
7. Brake Pedal Switch -FX2-
8. Windshield Washer Fluid Level Sensor -G33-
9. Headlamp Washer Pump -V11-
10. Rear Window Washer Pump -V13-
11. Windshield Washer Pump -V5-
12. Left Front Dampening Adjustment Valve -N336-
13. Left Front Brake Pad Wear Sensor -G34-
14. Engine Coolant Level (ECL) Sensor -G32-
15. Left Front Wheel Speed Sensor -G47-
16. Control Module for Left Front Object Detection Radar Sensor -J1088-
17. Left Front Parallel Parking Assistance Sensor, left model side -G568-
18. Charge Air Pressure Sensor -G31-
19. Engine hood contact switch -F266-
