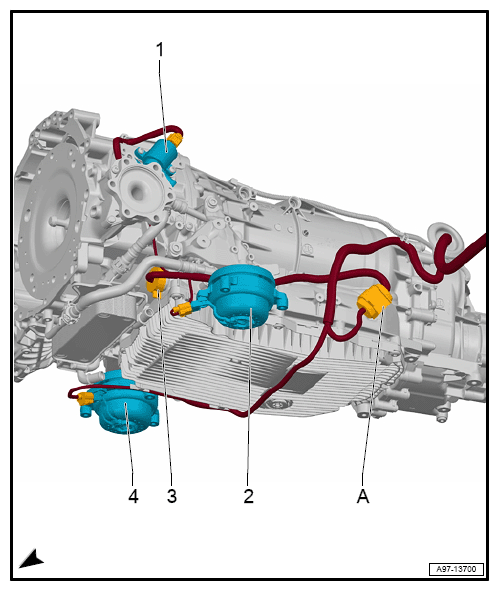

Transmission, Models With 6-CYL. Engine

A - 6-Pin Connector -T6L-, Black/6-Pin Connector -T6LX-, Black
A - 14-Pin Connector -T14T-, Black/14-Pin Connector -T14TX-, Black
1 - Transmission Oil Cooling Valve -N509-
2 - Transmission Mount Valve 1 -N262-
3 - Transmission Control Module (TCM) -J217-
4 - Transmission Mount Valve 2 -N263-

G12777750

Courtesy of AUDI OF AMERICA, LLC
