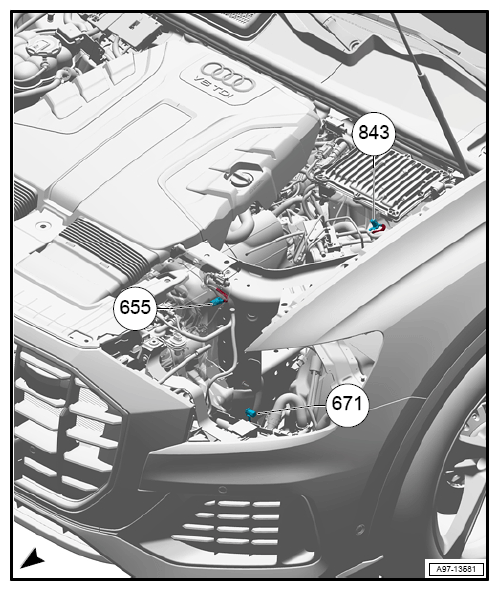

Vehicle Front, Left

  1. 655  - Ground Connection (on left headlamp)
    • Torque 9 Nm
  2. 671  - Ground Connection 1 (on left front long member)
    • Torque 9 Nm
  3. 843  - Ground connection on left suspension strut tower
G12777728Courtesy of AUDI OF AMERICA, LLC
