Wiring Diagram
>>

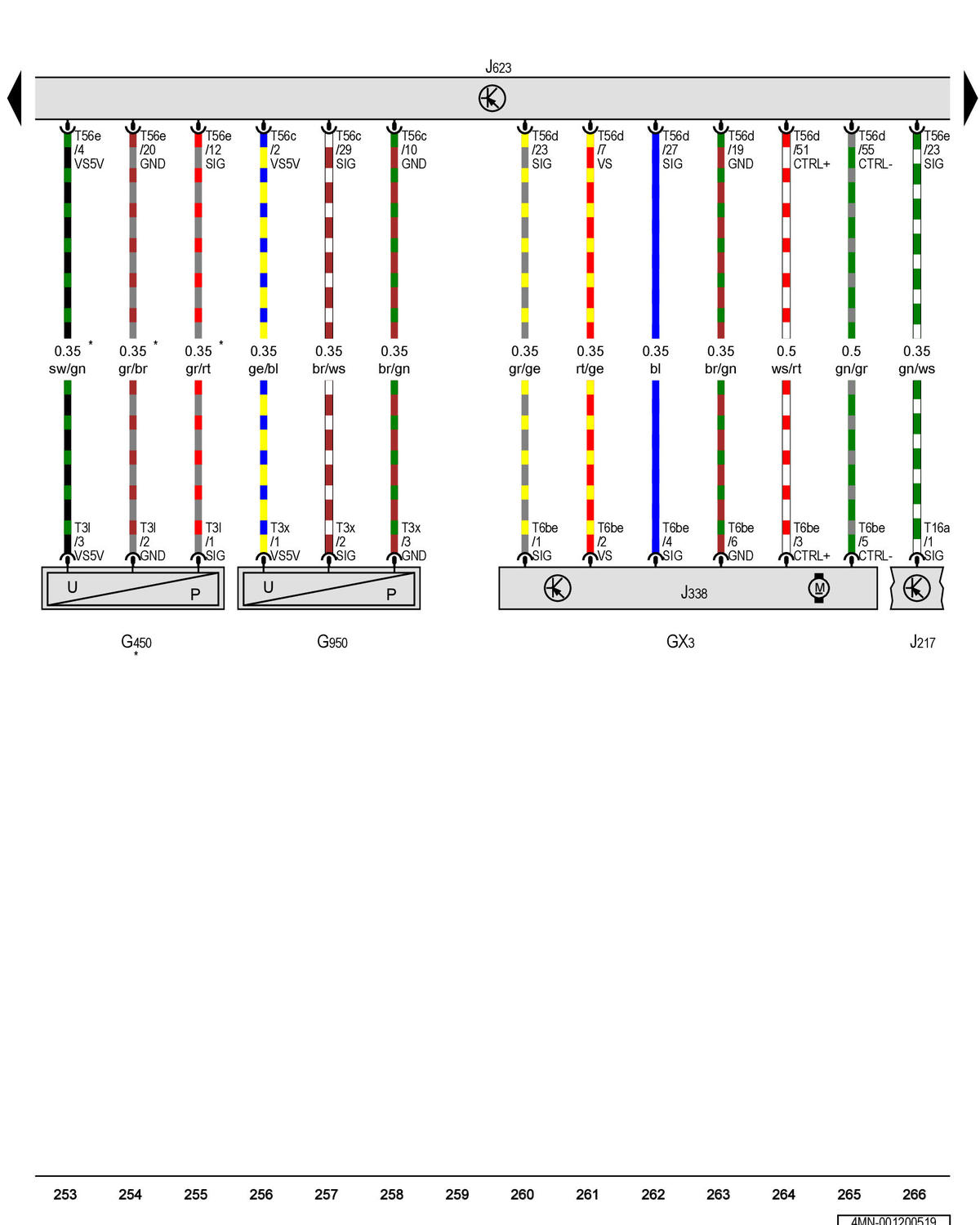

Exhaust Pressure Sensor 1, Tank Ventilation Pressure Sensor 1, Transmission Control Module, Throttle Valve Control Module, Engine/Motor Control Module
>>
Notes
Exhaust Pressure Sensor 1, Tank Ventilation Pressure Sensor 1, Transmission Control Module, Throttle Valve Control Module, Engine/Motor Control Module: Notes
Courtesy of AUDI OF AMERICA, LLC
