Cam Position Sensor 3 -G300-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
Depending on the model, preliminary work may be required. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

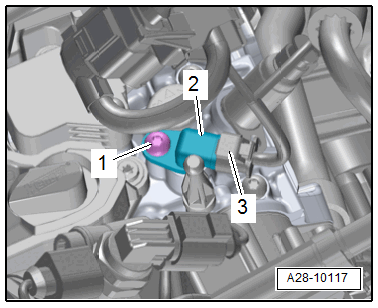

-- Disconnect the connector -3- from the Cam Position Sensor 3 -G300- -2-.
-- Remove the bolt -1- and remove the camshaft position sensor.
