Wiring Diagram
>>

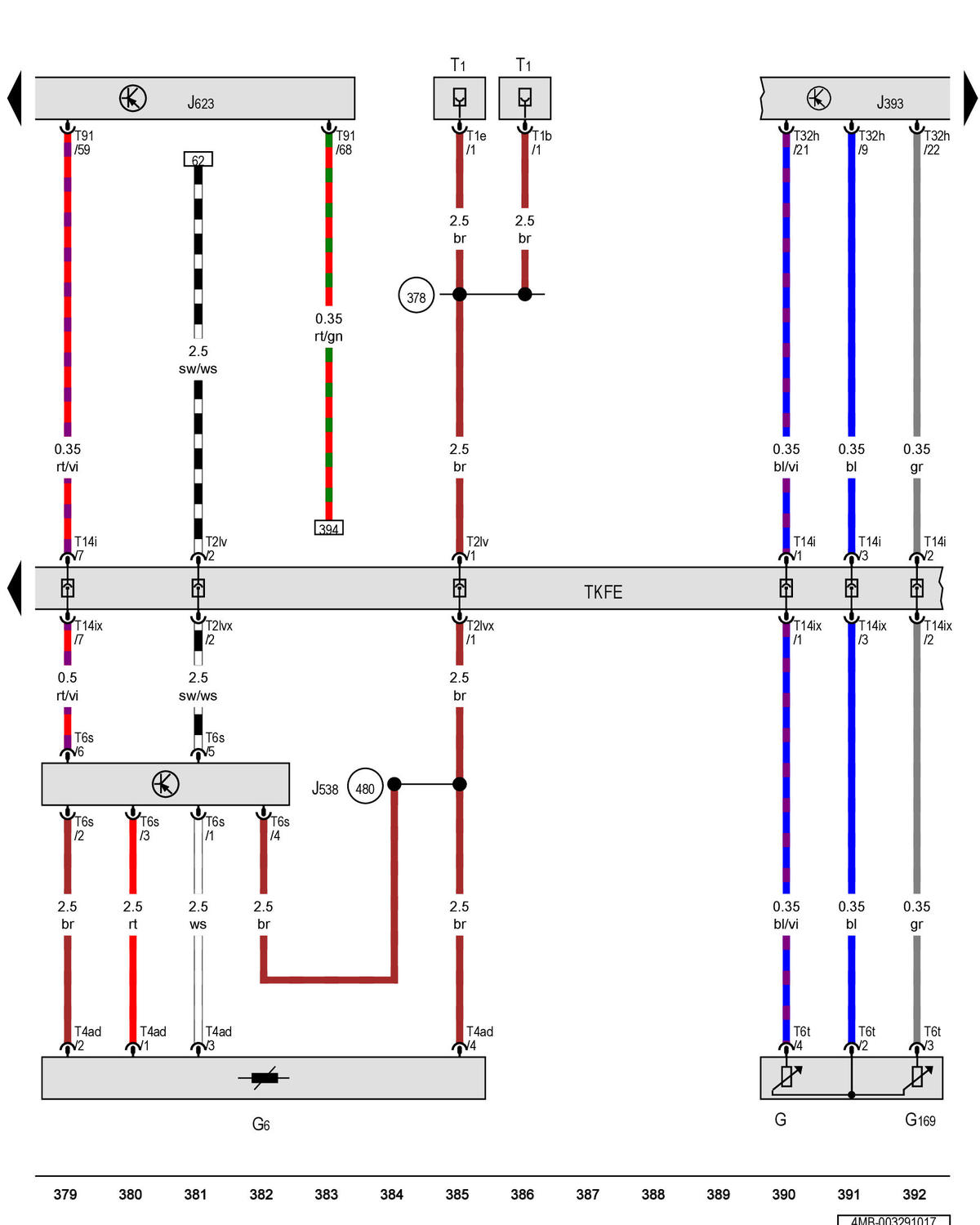

Transfer Fuel Pump, Fuel Level Sensor 2, Comfort System Central Control Module, Fuel Pump Control Module, Engine/Motor Control Module
>>
Notes
Transfer Fuel Pump, Fuel Level Sensor 2, Comfort System Central Control Module, Fuel Pump Control Module, Engine/Motor Control Module: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
