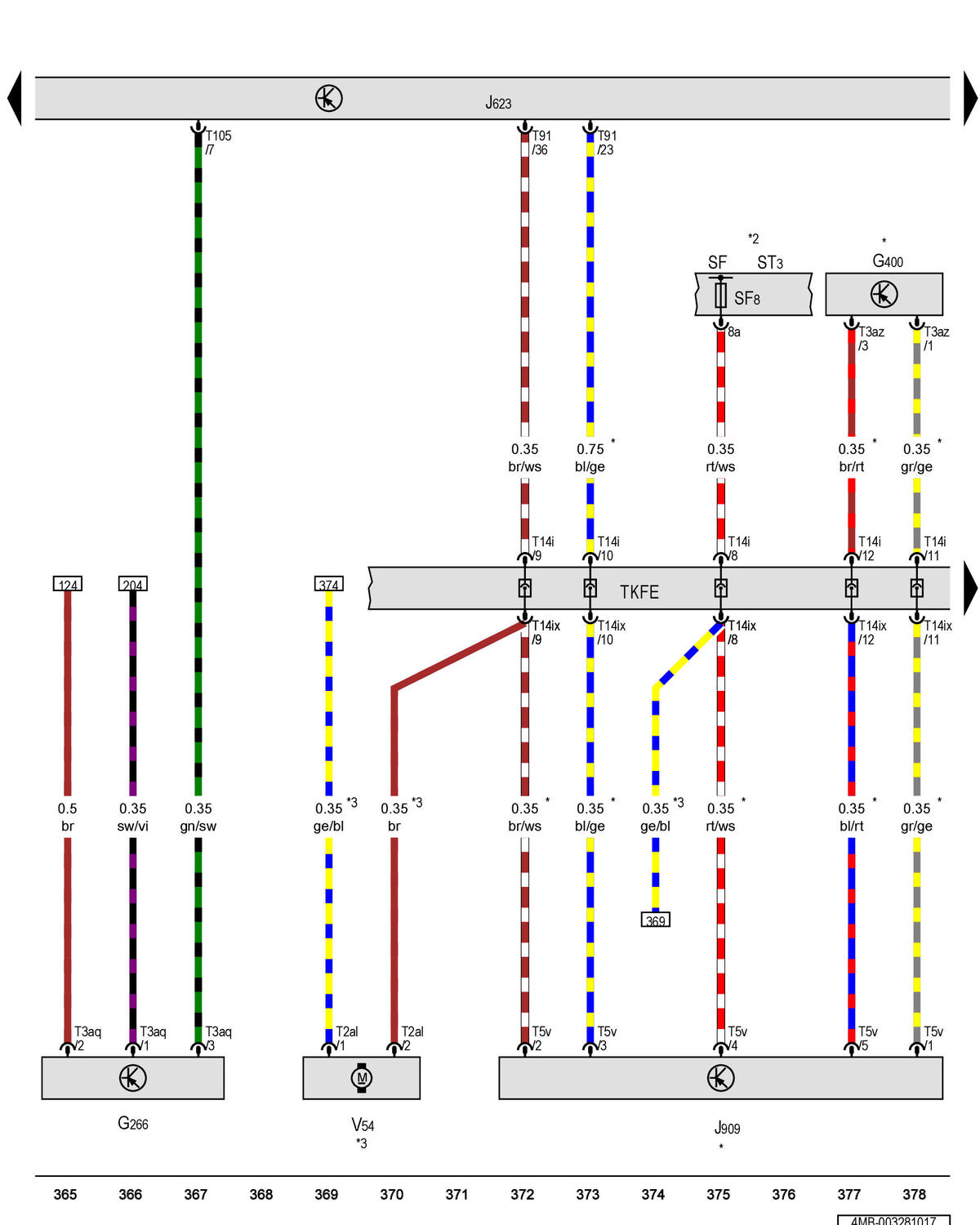

Oil Level Thermal Sensor, Fuel Tank Pressure Sensor, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, Metering Pump: Notes

GWW4MB-003281017Courtesy of AUDI OF AMERICA, LLC
