Home >> Audi >> 2019 >> Q7 Prestige >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Wiring Diagram [CREC] >> Wiring Diagram >> Battery, Battery Monitoring Control Module, Battery Interrupt Igniter >> Notes

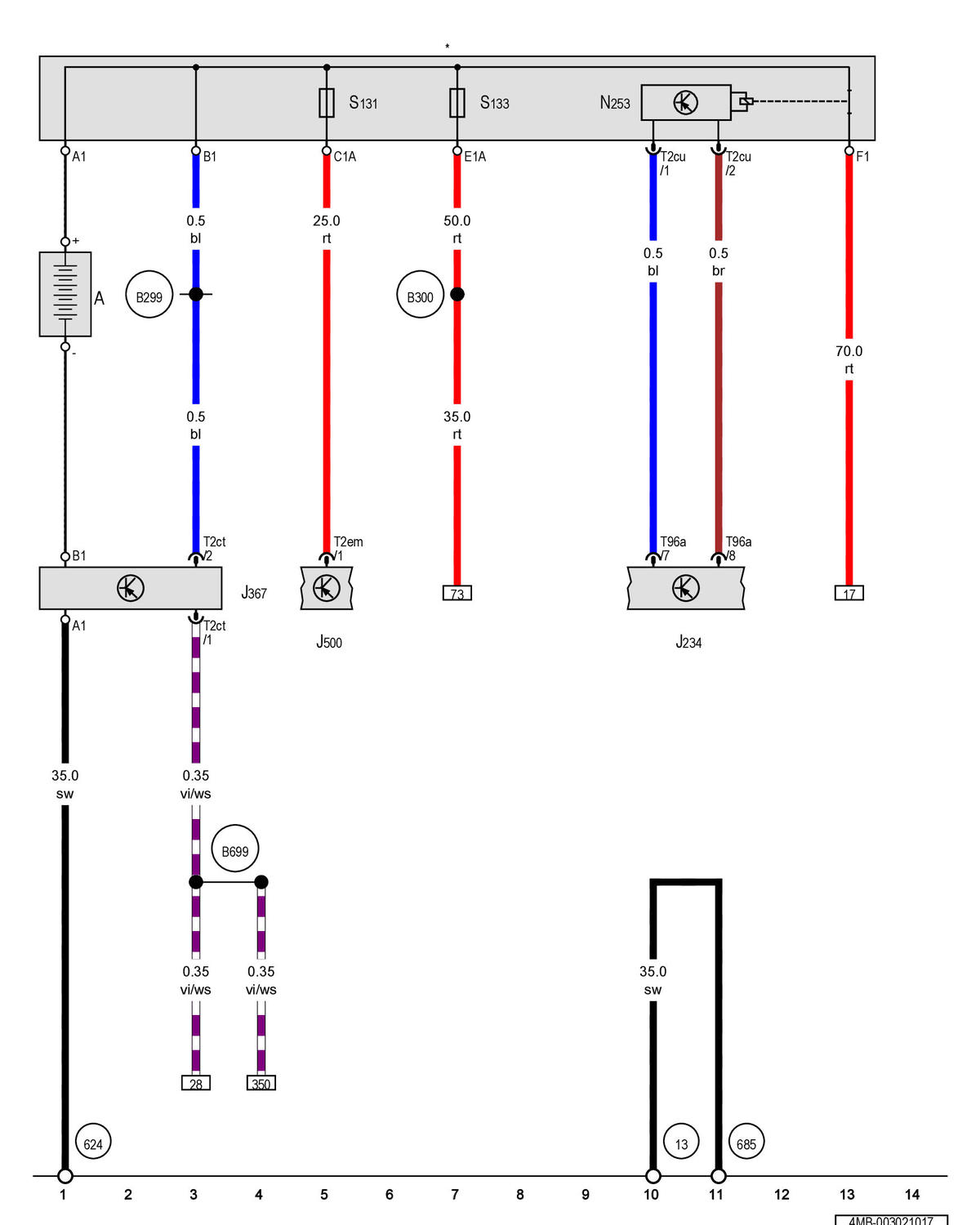

Battery, Battery Monitoring Control Module, Battery Interrupt Igniter: Notes

GWW4MB-003021017

Courtesy of AUDI OF AMERICA, LLC
