Engine, Supporting In Installation Position
Special tools and workshop equipment required
- Engine Support Bridge: 10-222A
- Engine Support Bridge - Engine Bracket: 10-222A/1
- Engine Support Bridge - Spindle: 10-222A/11
- Engine Support Bridge - Adapters: 10-222A/34
Tools, Preparing

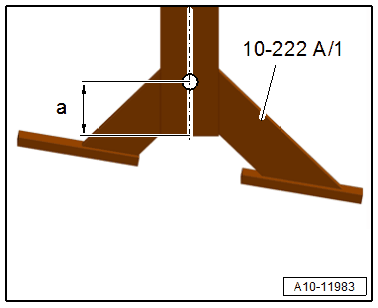

-- Make a 11 mm diameter hole in both : 10-222A/1 as shown.
- Dimension -a- = 30 mm
Procedure
Risk of accident due to the engine weight shifting.
- The transmission and tunnel crossmember must be installed for the support procedure described in the following.
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
-- Remove the left and right headlamp cover. Refer to HEADLAMP COVER, REMOVING AND INSTALLING .

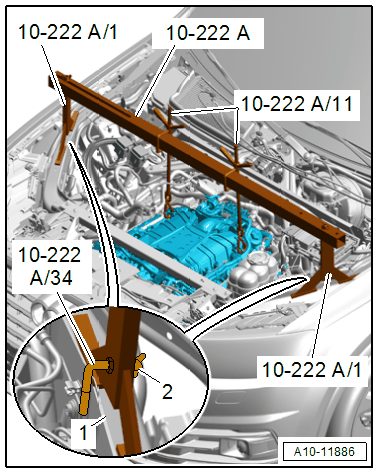

-- Position the : 10-222A on the left and right longitudinal member as shown.
-- Tighten the : 10-222A/34 on the : 10-222A/1 with the nut -2- at the same time the adapter must engage in the longitudinal member -1- as shown.
-- Attach the spindles : 10-222A/11 to the left and right engine lifting eyes.
-- Slightly pretension the engine with the spindle, do not lift.
Assembling
Assemble in the reverse order of removal. Note the following:
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
Tightening Specifications
- Refer to OVERVIEW - SUBFRAME MOUNT
- Refer to OVERVIEW - LOCK CARRIER .
