Engine, Removing

Special tools and workshop equipment required

Engine Bung Set: VAS6122
Scissor Lift Table: VAS6131B
Scissor Lift Table - Audi Set: VAS6131/10
Scissor Lift Table - A8 Set: VAS6131/11
Scissor Lift Table - Q7 Set: VAS6131/13
Coolant Collection System: VAS5014 or Shop Crane - Drip Tray: VAS6208
Hose Clip Pliers: VAS6340
Hose Clip Pliers: VAS6362
Used Oil Collection and Extraction Unit: SMN372500
Commercially available Step Ladder

Procedure

NOTE:

With the lock carrier installed, the engine is removed downward together with the transmission and the subframe.

During installation, all cable ties must be installed at the same location.

All bolts on suspension components with bonded rubber bushings must be tightened in curb weight position (no load).

Bonded rubber bushings have a limited range of rotation. Axle components with bonded rubber bushings must be brought into the position they will be in when driving before they are tightened (curb weight position). Otherwise, the bonded rubber bushing will have tension, which will reduce the service life.

-- Before beginning work determine the curb weight position or prescribed level. Refer to Repair Information .

NOTE:

The electro-mechanical parking brake must be released before disconnecting battery so the driveshaft can be rotated to remove it.

-- Position the front wheels so they are straight.

CAUTION:

Risk of destroying the electronic components.

Follow the steps for disconnecting the battery.

-- Switch off the ignition.

-- Disconnect the ground cable from the battery terminal. Refer to BATTERY, DISCONNECTING AND CONNECTING .

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of scalding due to hot steam and hot coolant.

The cooling system is under pressure when the engine is warm.
Cover the coolant expansion tank cap with a cloth and carefully open it to reduce the pressure.

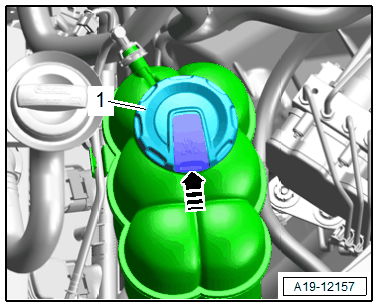

-- Open the cover -1- for the coolant expansion tank by pressing the retainer in direction of -arrow-.

-- Remove the front wheels. Refer to WHEEL, CHANGING .

-- Remove the left and right wheel housing liner front sections. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Remove the noise insulations. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the left and right lower longitudinal members. Refer to LOWER LONGITUDINAL MEMBER, REMOVING AND INSTALLING .

-- Remove the driveshaft. Refer to the appropriate Service Information .

-- Place the container of the : VAS5014 or the : VAS6208 underneath.

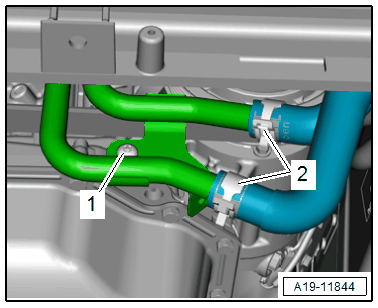

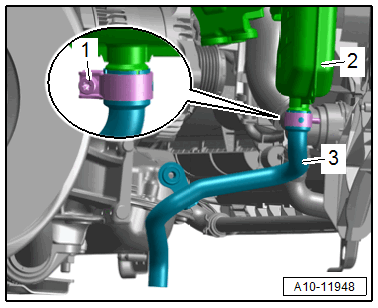

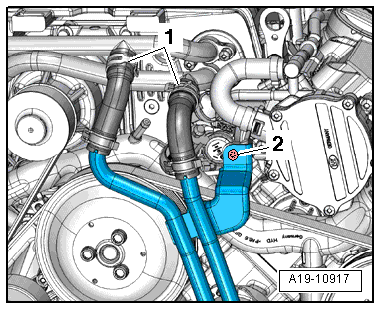

-- Loosen the clamps -2- and drain any remaining coolant to remove the coolant hoses from the left front coolant pipes.

Fig 1: Coolant Pipe Clamps And Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-.

-- Lift the clamp -1-, remove the coolant hose from the radiator and allow the coolant to drain.

Courtesy of AUDI OF AMERICA, LLC

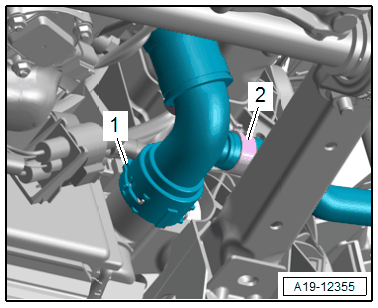

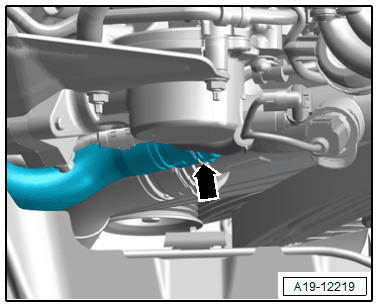

-- Equipped on some models: loosen the hose clamp -2- and remove the coolant hose from the radiator.

-- Remove the coolant hose from the right coolant pipe on the transmission by loosening the hose clamp -arrow- and letting the coolant drain out.

Courtesy of AUDI OF AMERICA, LLC

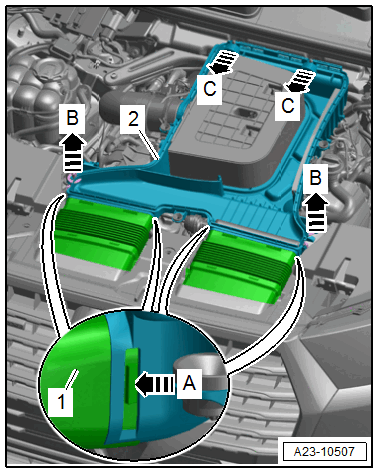

-- Open the left and right clip in direction of -arrow B-.

Courtesy of AUDI OF AMERICA, LLC

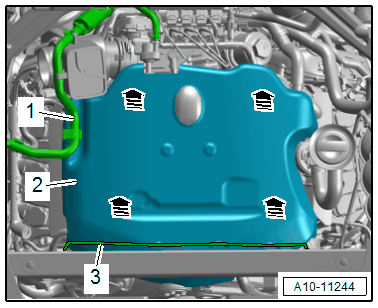

-- Remove the air filter upper section -1- in the center toward the rear from the ball pins in direction of -arrow A- and disengage from the air filter lower section.

-- Remove the air filter upper section.

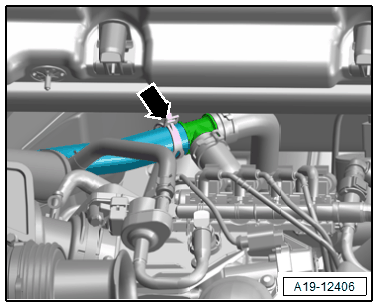

-- Loosen the hose clamp -1- and remove the air duct pipe.

Fig 2: Air Filter Bypass Door Valve -N275- Component Location

Courtesy of AUDI OF AMERICA, LLC

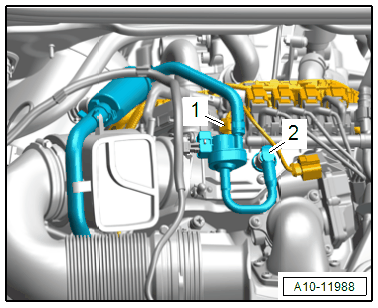

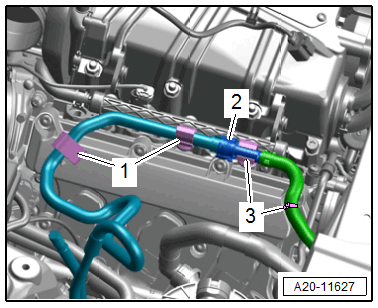

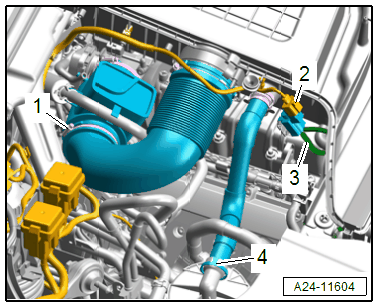

-- Remove the secondary air injection hose -4- by pressing the catches on both sides.

-- Disconnect the connector -2- for the Air Filter Bypass Door Valve -N275-.

-- Remove the vacuum hose -3-.

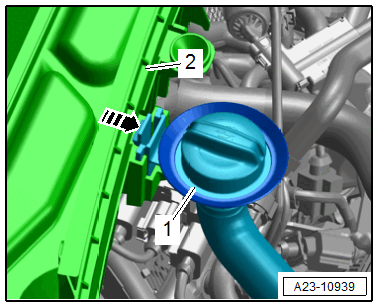

-- Release the retainer in direction of -arrow- and oil filler tube -1- upward from the air filter lower section -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainer in direction of -arrow A- and remove the air ducts -1- from the air filter lower section -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front air filter lower section from the ball pin upward in direction of -B arrows- and then remove the rear mount toward the front in direction of -C arrows-.

-- Free up the vacuum hoses -1 and 3-.

Courtesy of AUDI OF AMERICA, LLC

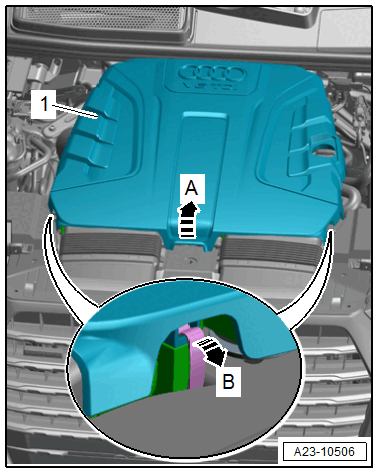

-- Carefully pull the engine cover -2- off of the retaining pins one after the other -arrows-. Do not pull sharply on the engine cover or pull it to one side.

-- Disconnect the vacuum connection -arrow- by pressing the release buttons on both sides.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- from the EVAP Canister Purge Regulator Valve 1 -N80-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vacuum hose -2- by pressing the release buttons on both sides.

-- Disengage the EVAP Canister Purge Regulator Valve 1 -N80- from the bracket free it up and move to the side with the hoses connected.

CAUTION:

There is a risk of contamination.

Follow the guidelines for clean working conditions when working on the fuel supply system. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Free up the fuel hose from the clips -1- and move it to the right side.

Courtesy of AUDI OF AMERICA, LLC

WARNING:

The fuel system is under pressure.

Risk of injury from fuel spraying out.

Wear protective eyewear.
Wear safety gloves.
Reduce the pressure: place clean cloths around the connection point and carefully open the connection point.

-- Disconnect the fuel hose -2-. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

-- Always seal the open lines and connections with clean plugs from the : VAS6122 .

NOTE:

Ignore -3-.

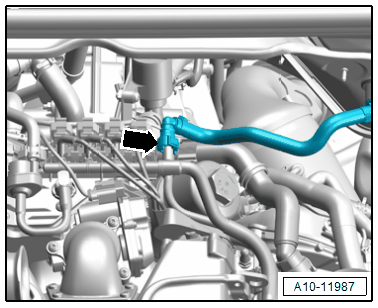

-- Versions without parking/auxiliary heater: loosen the hose clamp -arrow- and remove the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

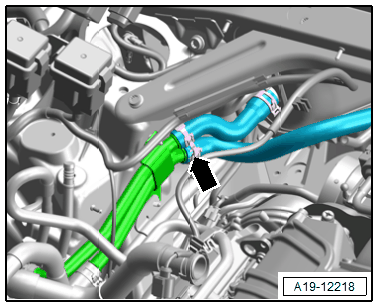

-- Versions with parking/auxiliary heater: loosen the hose clamp -arrow- and remove the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

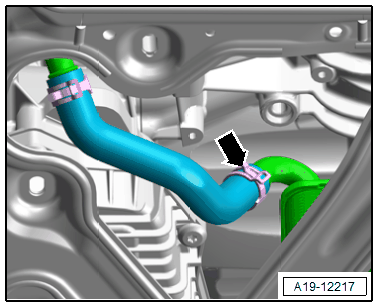

-- Open the clamp and remove the right front coolant hose -arrow- from the front coolant pipe.

Courtesy of AUDI OF AMERICA, LLC

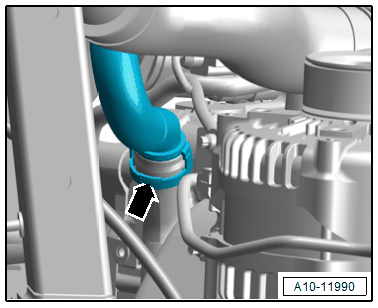

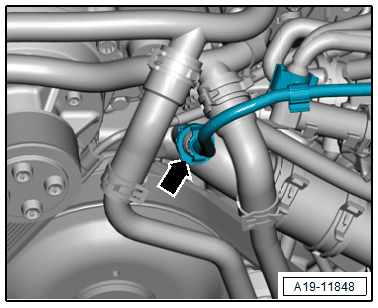

-- Open the clamp -arrow- and remove the coolant line.

Fig 3: Identifying Clamp

Courtesy of AUDI OF AMERICA, LLC

-- Free up the coolant line and push it to the left side.

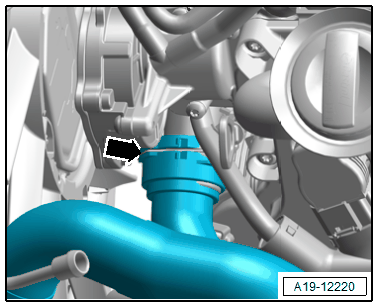

-- Remove the coolant hose -arrow- from the front coolant pipe by lifting the clip.

Courtesy of AUDI OF AMERICA, LLC

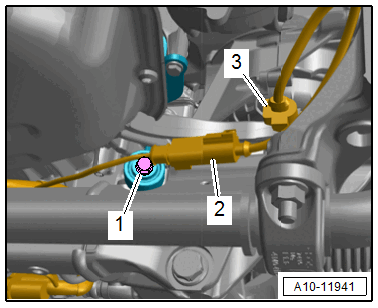

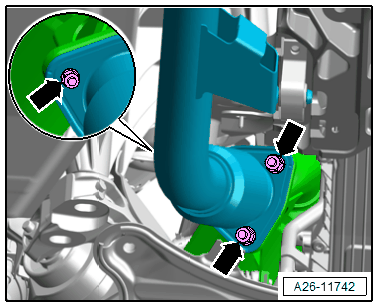

-- Remove the bolt -2- on the left front coolant pipes.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The installed position is shown in the illustration with the engine removed.

Ignore -1-.

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches in direction of -arrows- remove the Engine Control Module -J623- -3- and set it to the side.

NOTE:

Ignore -1-.

-- Disconnect the connectors -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches in direction of -arrow- to remove the connectors to the side.

-- Free up the engine wiring harness and set it on the engine.

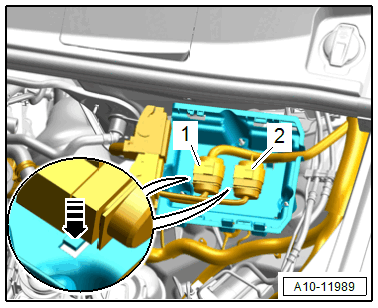

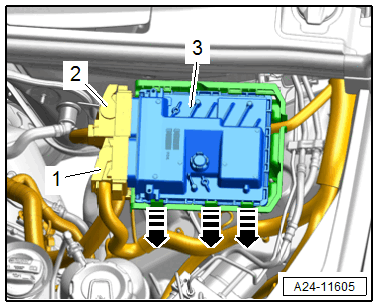

-- Release the latch in direction of -arrow- and open the E-box -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2- and free up the B+ wire.

-- Free up the wire -1- on the wiring duct.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and free up the ground wire.

-- Remove the bolt -3- and nut -4- and free up the wiring duct.

-- Disconnect the left and right connector -3- for the electrohydraulic engine mount solenoid valve, and free up the wires.

Fig 4: Engine mount component location/engine mount actuator

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left connector -2- from the bracket, disconnect it and free up the wire.

NOTE:

Ignore -1-.

CAUTION:

Risk of destroying by reversing the running direction on a used ribbed belt.

Before removing the ribbed belt, mark the running direction with chalk or a felt-tip pen for reinstallation.

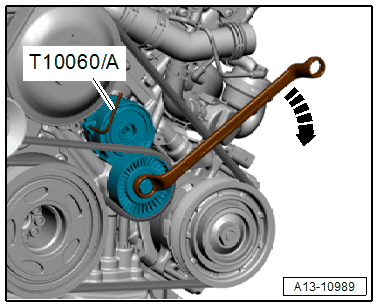

-- To release the tension on the ribbed belt, pivot the tensioner clockwise in direction of -arrow- and then lock using a : T10060A .

Fig 5: Releasing Ribbed Belt Tension Using Locking Pin T10060A

Courtesy of AUDI OF AMERICA, LLC

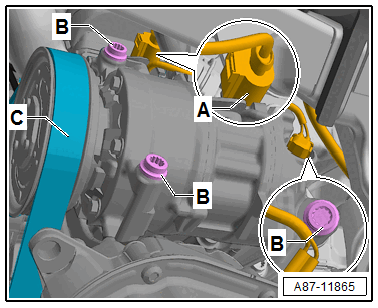

-- Remove the ribbed belt -C- from the belt pulley of the air conditioning compressor.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -A-.

CAUTION:

Risk of damaging the refrigerant lines and hoses.

Do not bend, twist or stretch the refrigerant lines and hoses.

-- Remove the bolts -B-. Then remove the A/C compressor from the bracket and tie it up on the left side.

-- Remove the bolts -arrows-. Then remove the A/C compressor from the bracket and tie it up on the left side.

-- Disconnect the secondary air hose -arrow- by pressing the release buttons on both sides.

Courtesy of AUDI OF AMERICA, LLC

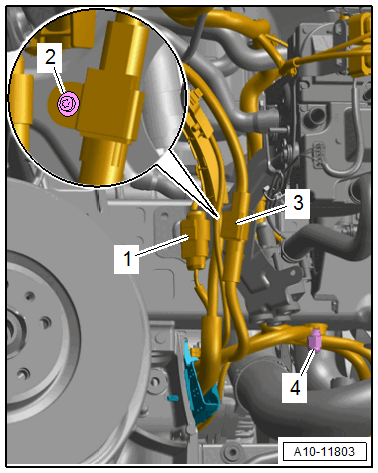

-- Remove the nut -4- and free up the ground wire.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2-.

-- Disconnect the connectors -1 and 3- and free up the wires.

NOTE:

The version with the parking/auxiliary heater is shown.

-- Versions with parking/auxiliary heater: loosen the screw-type clamp -1- and remove the exhaust pipe -3- from the muffler -2- for the parking/auxiliary heater.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the left and right connector -2- for the Right Front ABS Wheel Speed Sensor -G45- /Left Front ABS Wheel Speed Sensor -G47- and free up the wire.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -1-.

-- Equipped on some models: disconnect the connector -arrow- on the left and right sides for the Left Front Level Control System Sensor -G78- /Right Front Level Control System Sensor -G289- and free up the wire.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the brake caliper and secure it with the brake hose still attached inside the wheel housing with wire. Refer to BRAKE CALIPER, REMOVING AND INSTALLING .

CAUTION:

Risk of damaging the brake pistons.

Do not operate brake pedal when the brake caliper is removed.

-- Loosen the threaded connection -1-.

Fig 6: Identifying Upper Control Arms And Bolts

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of damaging the wheel bearing housing.

The slits in the wheel bearing housing must not be widened using a chisel or similar tool!

-- Remove the joint pins in the upper control arm -2- from the wheel bearing housing.

NOTE:

Ignore -3 and 4-.

-- Repeat the procedure on the other side of the vehicle.

-- Remove the left and right nut -4-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The bolt -3- will be removed later.

Ignore -1 and 2-.

-- Remove the stabilizer bar. Refer to STABILIZER BAR, REMOVING AND INSTALLING .

-- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

CAUTION:

There is a risk of damaging the suspension components.

If the subframe mount, steering gear or subframe crossbrace are not installed correctly, do not rest the vehicle on its wheels.

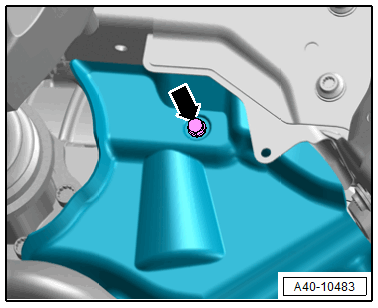

-- Remove the left and right bolts -arrow- for the subframe shield.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the steering intermediate shaft from the steering gear and the push the splines together. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

Fig 7: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the decoupling element inside the front exhaust pipe.

Do not bend decoupling element in the front muffler more than 10°.

-- Remove the left and right nuts -arrows- and the front muffler.

Courtesy of AUDI OF AMERICA, LLC

If the Engine Should Be Separated from the Transmission:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and push the ATF cooler with the hoses -1, 2 and 4- attached.

NOTE:

Ignore -3-.

-- Remove the lower cover -1- from the transmission in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Counterhold the crankshaft and loosen the torque converter bolts using : T40058 and a wrench.

Fig 8: Counter Hold Crankshaft Using Socket T40058

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Only turn crankshaft only in direction of engine rotation in direction of -arrow-.

-- Remove the six bolts -arrow- for the torque converter on the drive plate -1-. Turn the crankshaft an additional 60° in the direction of engine rotation.

Courtesy of AUDI OF AMERICA, LLC

Continuation of Engine Removal:

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers in direction of -A arrows- and slide the sleeve -1- on the emergency release cable in the direction of -arrow B-.

-- Disengage the rear section of the emergency release cable from the front section of the emergency release cable in direction of -arrow C-.

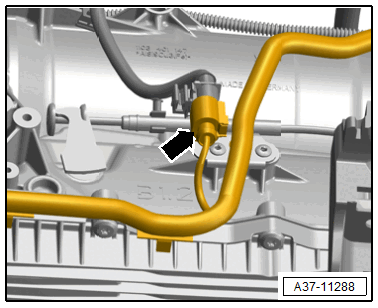

-- Disconnect the connector -arrow- by opening the heat shield boot.

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of destroying the transmission control module (Mechatronic) with static discharge.

Before handling the connector, always "discharge" the static electricity. Do this by briefly touching a grounded object, for example the vehicle ground, the vehicle or the hoist.
Do not touch connector terminals in the transmission connector with hands.

-- Turn the twist lock counter-clockwise -arrow- and disconnect the connector -1- from the transmission.

-- Free up the wiring harness on the transmission.

Scissor Lift Table, Preparing:

Fig 9: Scissor Lift Chart

Courtesy of AUDI OF AMERICA, LLC

-- Equip the : VAS6131B with : VAS6131/10 and : VAS6131/13 as follows:

Table Coordinates	Parts from : VAS6131/10 and : VAS6131/13
B5	/10-1	/10-4	/10-5	/10-8
G5	/10-1	/10-4	/10-5	/10-8
B6	/10-1	/10-3	/10-5	/10-6
G6	/10-1	/10-3	/10-5	/10-6
A8	/13-4	/10-2	/10-5	/13-2
F8	/13-4	/10-2	/10-5	/13-2
C15	/10-1	/10-4	/10-5	/10-13
F15	/10-1	/10-4	/10-5	/10-13

-- Secure the mounting elements by hand on the : VAS6131B .

-- Position the : VAS6131B so it is level.

Note the bubble level (sight glass) on support platform.

-- Guide the : VAS6131B under the engine/transmission subassembly.

-- Attach mounting elements from the : VAS6131/10 and : VAS6131/13 at the left and right of the control arm, as shown.

Courtesy of AUDI OF AMERICA, LLC

-- Make sure the threaded spindles are completely screwed in.

-- Attach the mounting elements from the : VAS6131/10 to the mounting element on the left and right front as shown.

Courtesy of AUDI OF AMERICA, LLC

-- Install the internal multi-point bolt -arrow- for the subframe crossbrace all the way into the subframe on the left and right sides.

Courtesy of AUDI OF AMERICA, LLC

-- Attach the mounting elements from the : VAS6131/10 to the multi-point bolts for the subframe crossbrace on the left and right sides as shown.

-- Attach the mounting elements from the : VAS6131/10 to the tunnel crossmember on the left and right sides as shown.

Courtesy of AUDI OF AMERICA, LLC

-- Rotate all of the mounting element spindles upward until all the mounting pins come in contact with the mounting points.

-- Tighten the mounting element base plates to 20 Nm on the : VAS6131B .

-- Secure the subframe. Refer to SUBFRAME, SECURING .

-- Remove the bolts -arrows- on the tunnel crossmember.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolts -3-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The threaded connections -1, 2 and 4- are already separated.

CAUTION:

Risk of damaging the hose and line connections as well as the engine compartment.

Make sure all the hose and line connections between the engine, transmission, subframe and body have been disconnected.
Carefully guide the engine/transmission assembly with the subframe out of engine compartment when lowering.
Carefully guide the suspension struts on the longitudinal members.

-- Lower the : VAS6131B with the engine/transmission assembly and remove from under the vehicle.
