Special Tools

Special tools and workshop equipment required

Hose Clamps - Up To 25mm:3094

Fig 1: Hose Clamps
Courtesy of AUDI OF AMERICA, LLC
Hook And Support Tool:3311

Fig 2: Hook And Support Tool 3311 With Bolt 3311/1
Courtesy of AUDI OF AMERICA, LLC
:3311/1
Trim Removal Wedge:3409

Fig 3: Identifying Trim Removal Wedge
Courtesy of AUDI OF AMERICA, LLC
Used Oil Collection and Extraction Unit:SMN372500

Fig 4: Identifying Used Oil Collection And Extraction Unit
Courtesy of AUDI OF AMERICA, LLC
Tensioning Strap:T10038

Fig 5: Identifying Tensioning Strap T10038
Courtesy of AUDI OF AMERICA, LLC
Engine/Gearbox Jack - Gearbox Support:T10337

Fig 6: Engine/Gearbox Jack - Gearbox Support T10337
Courtesy of AUDI OF AMERICA, LLC
Clutch Module Transportation Lock:T40170

Fig 7: Clutch Module Transportation Lock T40170
Courtesy of AUDI OF AMERICA, LLC

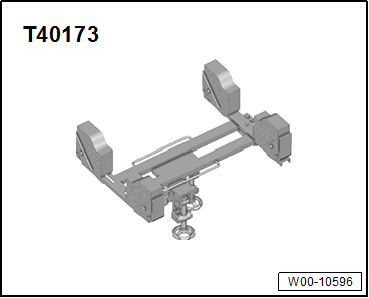

Gearbox Support:T40173

Fig 8: Gearbox Support T140173
Courtesy of AUDI OF AMERICA, LLC
Wrench - 21mm:T40263

Fig 9: Identifying Wrench - 21mm
Courtesy of AUDI OF AMERICA, LLC
Adapter:T40314

Fig 10: Adapter T40314
Courtesy of AUDI OF AMERICA, LLC
Locating Pins for Steering Box:T40334
Strut:T40335
Torque Wrench 1332 Insert - Ring Wrench - 16mm:VAG1332/14

Fig 11: Identifying Ring Spanner Insert AF 16 VAG 1332/14
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1410:VAG1410

Fig 12: Identifying Torque Wrench 1410 VAG1410
Courtesy of AUDI OF AMERICA, LLC
Engine and Transmission Holder:VAS6095A

Fig 13: Identifying Engine and Gearbox Bracket VAS6095A
Courtesy of AUDI OF AMERICA, LLC
Shop Crane:VAS6100

Fig 14: Identifying Shop Crane
Courtesy of AUDI OF AMERICA, LLC
Engine Bung Set:VAS6122

Fig 15: Engine Bung Set
Courtesy of AUDI OF AMERICA, LLC
Oil Filler:VAS6262A

Fig 16: Identifying Oil Filler Adapter
Courtesy of AUDI OF AMERICA, LLC
Oil Filler - Jointed Hose:VAS6262/5
Oil Filler - Adapter 6:VAS6262/6

Fig 17: Adapter For Oil Filling 6 VAS 6262/6
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers:VAS6362
Engine and Gearbox Jack:VAS6931

Fig 18: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench Adapter:VAS6948

Fig 19: Identifying Torque Wrench Adapter VAS6948
Courtesy of AUDI OF AMERICA, LLC
Holding Plate:VW309A

Fig 20: Holding Plate VW 309
Courtesy of AUDI OF AMERICA, LLC
