Wiring Diagram [DBPA]
>>
Wiring Diagram(S)
>>

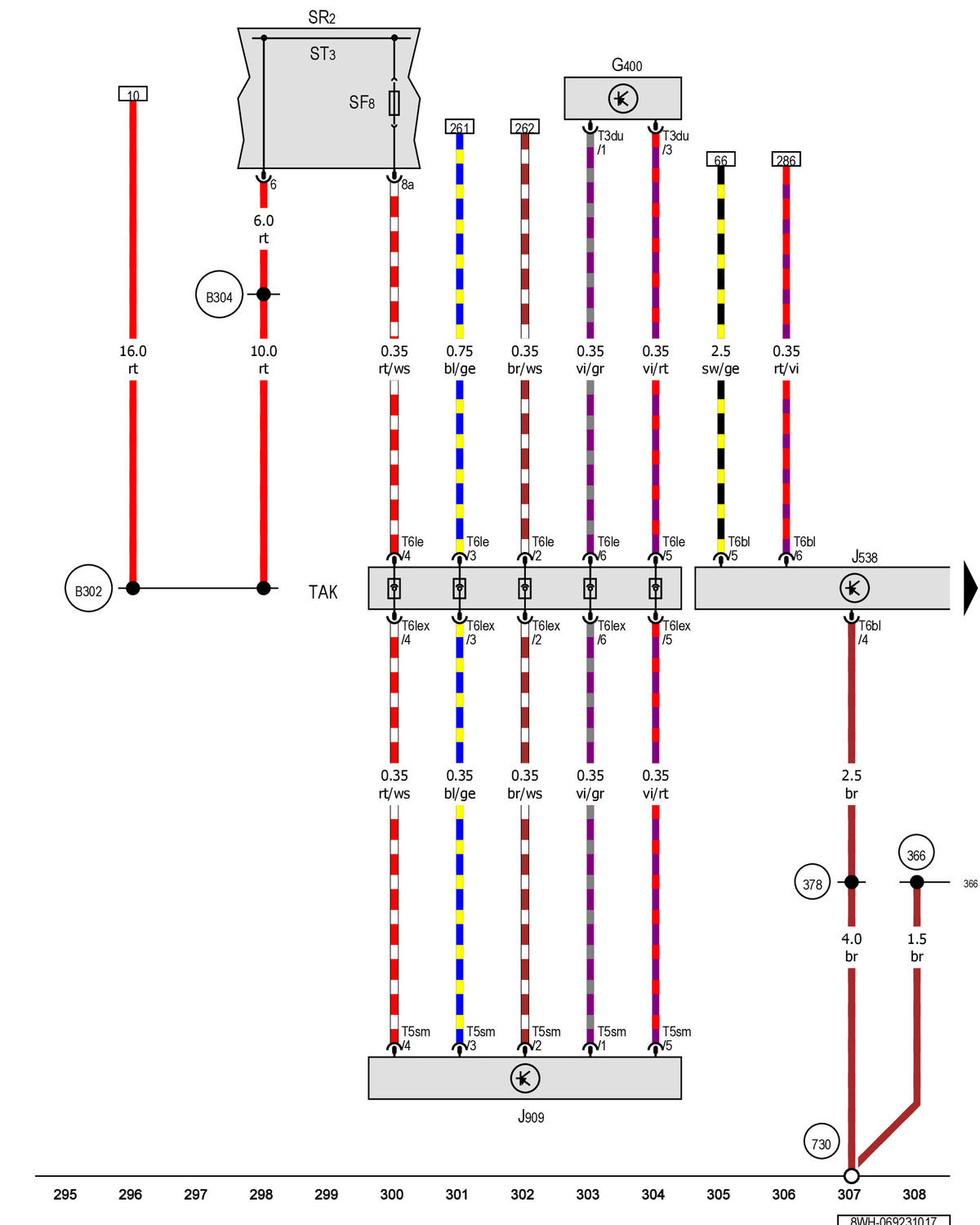

Fuel Tank Pressure Sensor, Fuel Pump Control Module, Fuel Tank Leak Detection Control Module, Relay And Fuse Panel 2
>>
Notes
Fuel Tank Pressure Sensor, Fuel Pump Control Module, Fuel Tank Leak Detection Control Module, Relay And Fuse Panel 2: Notes
