Wiring Diagram [DBPA]
>>
Wiring Diagram(S)
>>

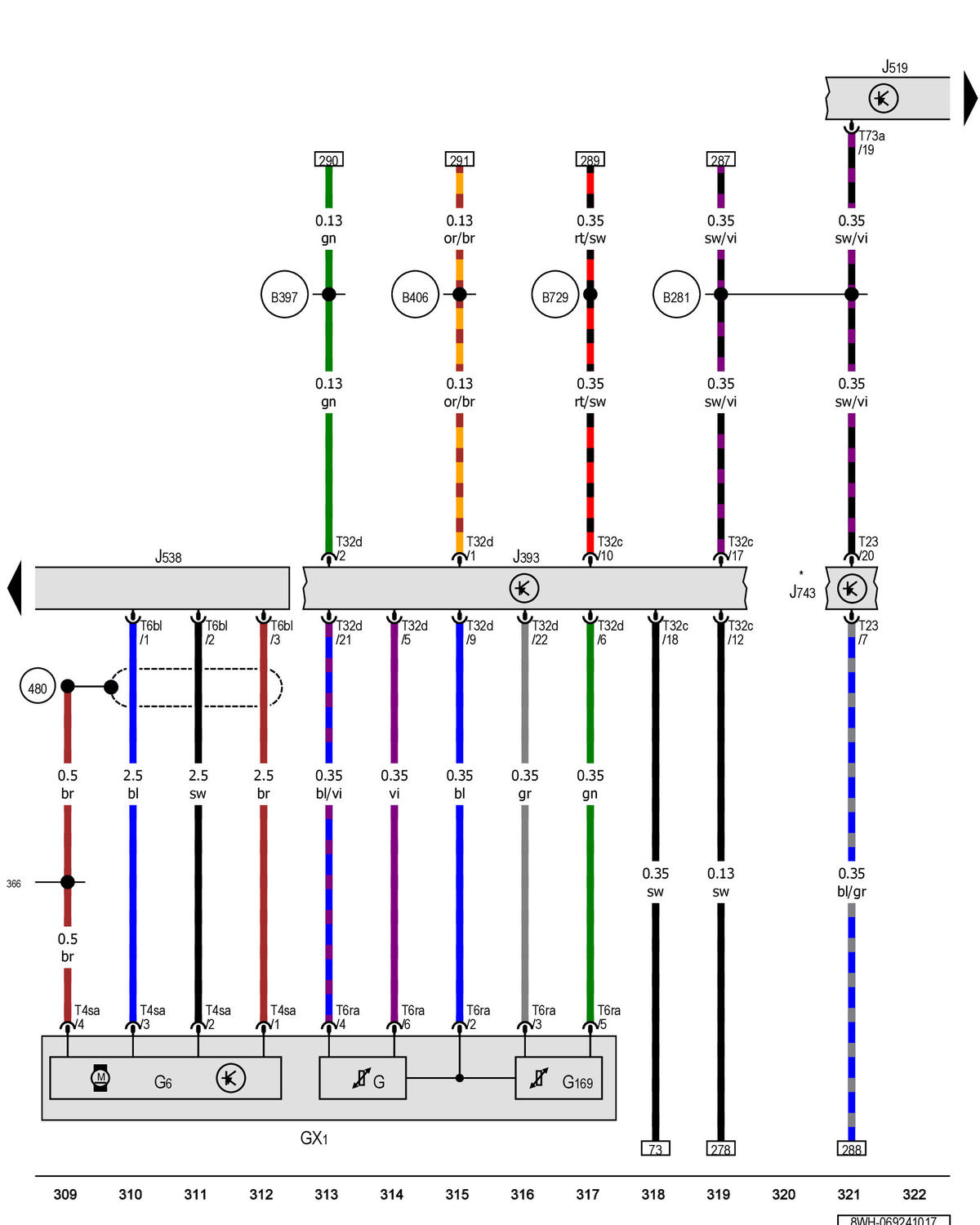

Fuel Delivery Unit, Comfort System Central Control Module, Vehicle Electrical System Control Module, Fuel Pump Control Module, Dual-Clutch Transmission MECHATRONIC
>>
Notes
Fuel Delivery Unit, Comfort System Central Control Module, Vehicle Electrical System Control Module, Fuel Pump Control Module, Dual-Clutch Transmission MECHATRONIC: Notes
