Overview - Accelerator Pedal Module

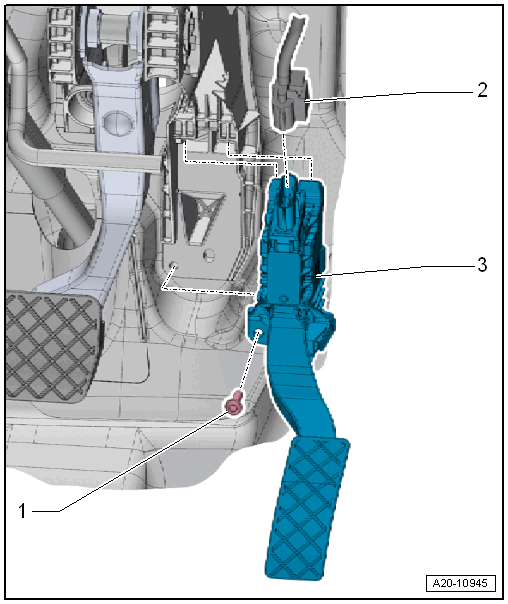

Fig 1: Exploded View Of Accelerator Pedal Mechanism

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 6 Nm
Connector
- Pull on the connector to make sure it is engaged correctly and securely.
Accelerator Pedal Module
- With Accelerator Pedal Position Sensor -G79- and Accelerator Pedal Position Sensor 2 -G185-
- Checking using the Vehicle Diagnostic Tester.
- Depending on the engine/transmission combination, an adaptation must be performed after replacing.
- If a corresponding menu item is in the engine electronics tree structure under "functions", perform the adaptation using the Vehicle Diagnostic Tester.
- Removing and Installing. Refer to ACCELERATOR PEDAL POSITION SENSORS -G79- / -G185-, REMOVING AND INSTALLING .
