Engine, Securing To Engine And Transmission Holder

Special tools and workshop equipment required

Procedure

The transmission is separated from the engine. Refer to ENGINE AND TRANSMISSION, SEPARATING .

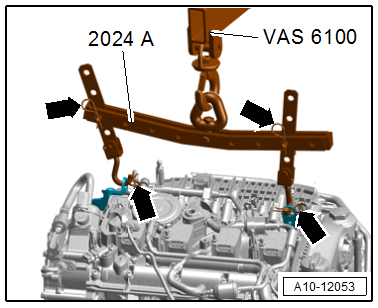

-- Engage the :2024A onto the engine and onto the :VAS6100 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

To be aligned to the center of gravity of the assemblies, the mounting hook rail with holes must be inserted as shown.

CAUTION:

There is a risk of injury from the lifted engine falling.

Parts of the body could be crushed.

- Secure the mounting hooks and pins on the lifting tackle with a securing pin.

-- Insert the securing pins -arrows- to secure the mounting hooks and alignment pins.

-- Tighten the :VW540 on the transmission side as shown on the engine with the bolts -arrows- and nut -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the :VW540 with mounting pin -3- and cotter pin -1- on the :VAS6095A .
