Wiring Diagram [CZRA]
>>
SLP Title
>>

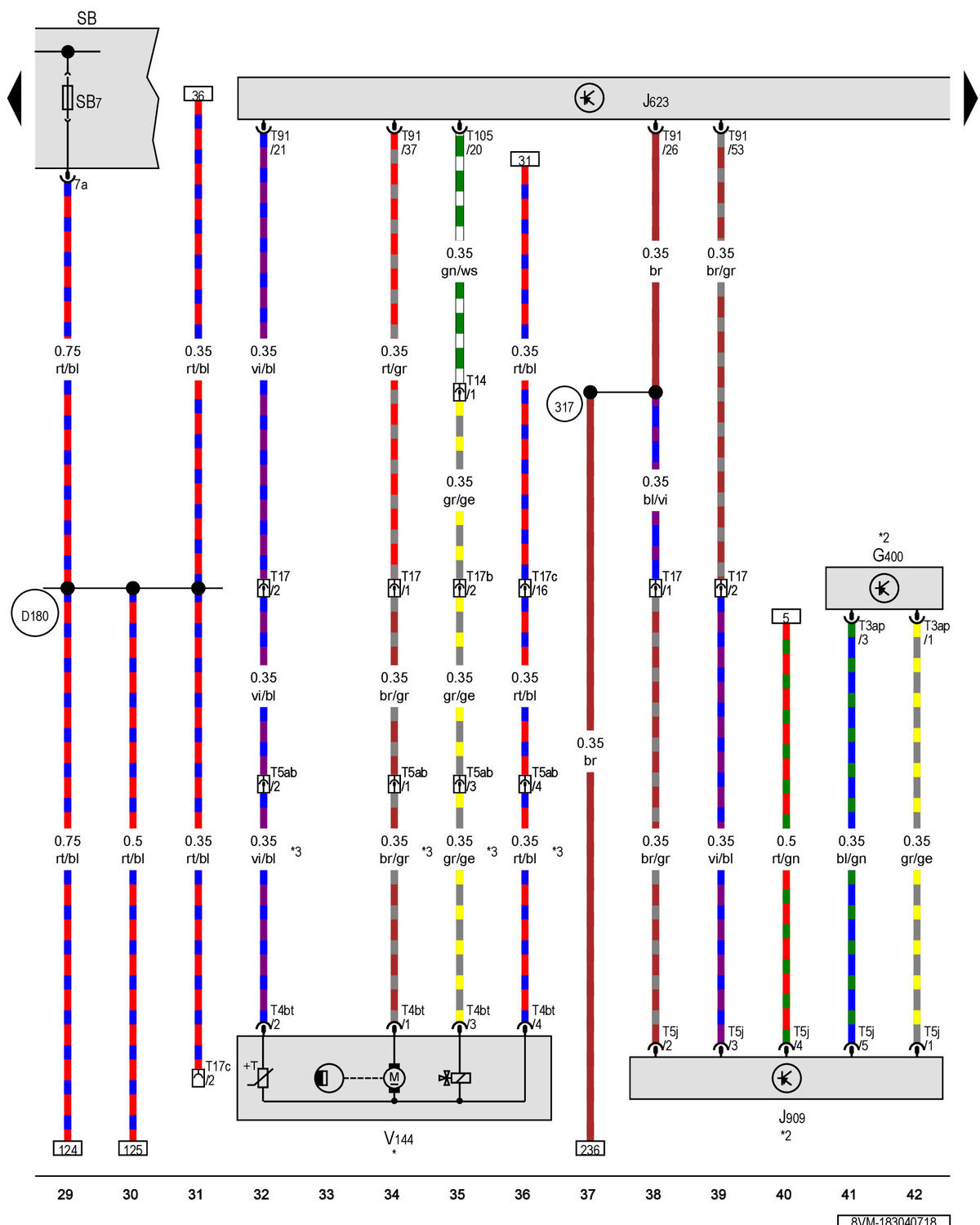

Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, Fuse Panel B, Leak Detection Pump
>>
Notes
Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, Fuse Panel B, Leak Detection Pump: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
