Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING: Removing

-- Open the glove compartment.

-- Remove any CD/DVDs and SD/SIM cards from the Information Electronics Control Module 1 -J794-.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

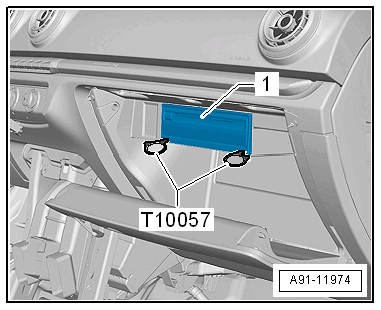

-- Insert the two clips from the : T10057  into the slits in the Information Electronics Control Module 1 -J794- -1- until they lock into place. The points on the gripping eyelets face outward.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Information Electronics Control Module 1 -J794- -1- from the glove compartment at the : T10057  grip eyes.

-- Release and disconnect the connectors from the Information Electronics Control Module 1 -J794- -1-.

-- Insert the : VAS6223/9  -1- onto the MOST bus connector -2-.

Fig 1: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

-- Press the release tabs on the Information Electronics Control Module 1 -J794- and remove the Radio Removal Tool: T10057  .
