Special Tools

Special tools and workshop equipment required

• Refractometer: T10007A
  Fig 1: Refractometer : T10007 A

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1331 Insert - Ring Wrench - 12mm: T10360

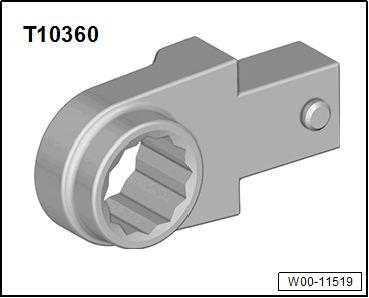

  Fig 2: Identifying Ring Wrench

  Courtesy of AUDI OF AMERICA, LLC
• Cooling System Tester: VAG1274B

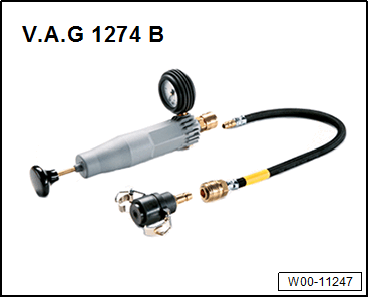

  Fig 3: Cooling System Tester VAG1274B

  Courtesy of AUDI OF AMERICA, LLC
• Cooling System Tester - Adapter: VAG1274/8

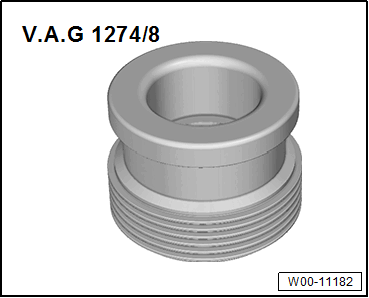

  Fig 4: Identifying Cooling System Tester Adapter

  Courtesy of AUDI OF AMERICA, LLC
• Cooling System Tester - Adapter: VAG1274/9

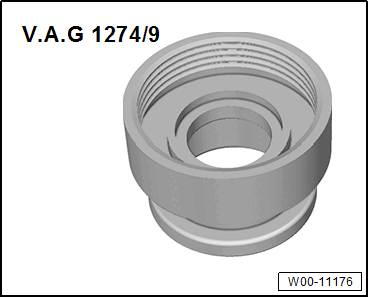

  Fig 5: Cooling System Tester - Adapter VAG1274/9

  Courtesy of AUDI OF AMERICA, LLC

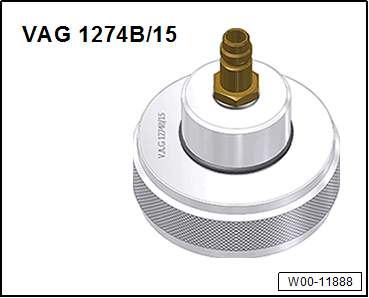

• Adapter: VAG1274B/15

  Courtesy of AUDI OF AMERICA, LLC

• Cooling System Charge Kit: VAS6096

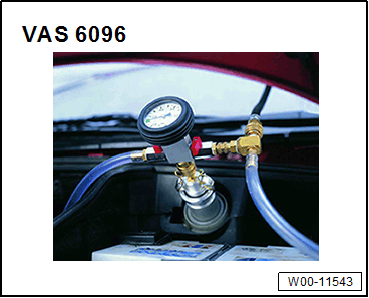

  Fig 6: Cooling System Charge Kit: VAS6096

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clip Pliers: VAS6340
  Fig 7: Hose Clip Pliers VAS6340

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clip Pliers: VAS6362
  Fig 8: Hose Clip Pliers

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clamps - Up To 25 mm: 3094
  Fig 9: Hose Clamps

  Courtesy of AUDI OF AMERICA, LLC
• Not Illustrated:
• Adapter VAG1274B/15: VAG1274B/15
