Transmission, Transporting
Special tools and workshop equipment required
- Engine Support Bridge - Additional Hooks (2 pc.):10-222A/2
- Engine/Gearbox Support Shackle (2 pc.):10-222A/12
- Shop Crane:VAS6100
Procedure

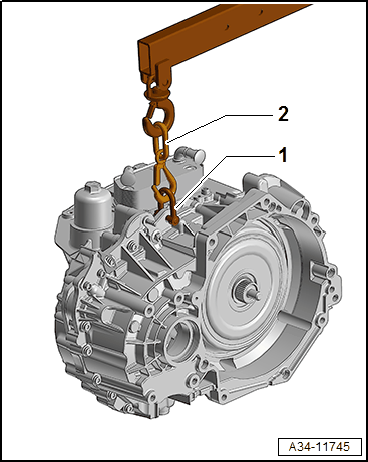

-- Secure the :10-222A/12 to the transmission lifting eye.
-- Attach the :VAS6100 to the :10-222A/2 .
CAUTION:
Risk of Damaging the Transmission Fluid Cooler.
- Guide the transmission when transporting.
