Overview - Assembly Mounts

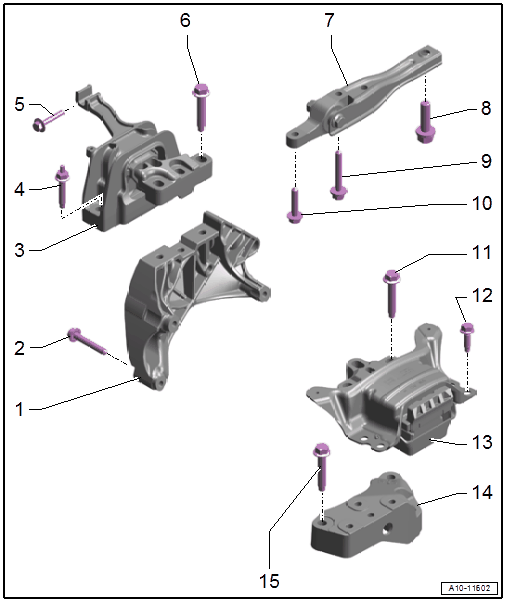

Fig 1: Assembly Mounts Exploded View

Courtesy of AUDI OF AMERICA, LLC

1 - 6 -
Engine Mount

Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
7 -
Pendulum Support
- Removing and Installing. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
8 -
Bolt
- 130 Nm + 90°
- Always replace after removing
9 -
Bolt
- 50 Nm + 90°
- Always replace after removing
10 -
Bolt
- 50 Nm + 90°
- Always replace after removing
11 -
Bolt
- 60 Nm + 90°
- Always replace after removing
12 -
Bolt
- 50 Nm + 90°
- Always replace after removing
13 -
Transmission Mount
- With support arm
- Removing and Installing. Refer to OVERVIEW - SUBFRAME MOUNT .
14 -
Transmission Support
15 -
Bolt
- 40 Nm + 90°
- Always replace after removing
