Engine, Supporting In Installation Position
Special tools and workshop equipment required
- Engine Support Bridge:10-222A
- Engine Support - Basic Set:T40091
- Engine Support - Supplement Kit:T40093A with Engine Support Brackets :T40093/7 and :T40093/8
Procedure
Risk of accident due to the engine weight shifting.
- The transmission and tunnel crossmember must be installed for the support procedure described in the following.
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
Fire hazard and risk of damage due to a missing engine cover.
- The engine cover must be always be installed before the hood is closed.
- The engine may not be started and the vehicle may not be driven with the hood closed without an engine cover.
-- Remove the left and right upper longitudinal members. Refer to LOCK CARRIER .

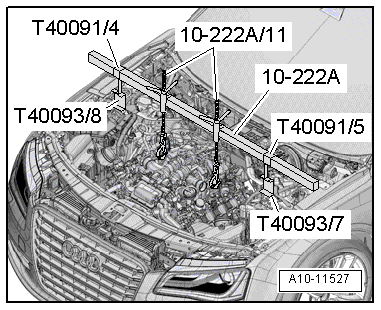

-- Position the :10-222A on the left and right suspension strut domes as shown.
-- Attach the spindle to the engine lifting eyes and pre-tension the engine slightly.
Assembling
Assemble in the reverse order of removal. Note the following:
-- Install the upper longitudinal member. Refer to LOCK CARRIER .
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
Fire hazard and risk of damage due to a missing engine cover.
- The engine cover must be always be installed before the hood is closed.
- The engine may not be started and the vehicle may not be driven with the hood closed without an engine cover.
