Overview - Assembly Mounts

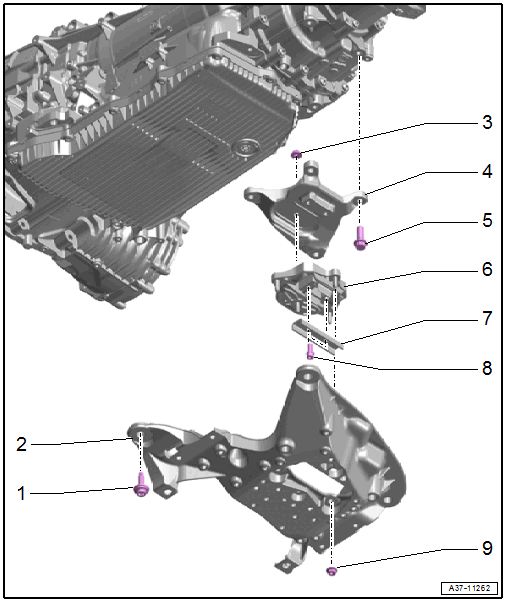

Fig 1: Exploded View Of Transmission Mount

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 55 Nm
Tunnel Crossmember
- There are different versions depending on the model
- Removing and Installing. Refer to TUNNEL CROSSMEMBER, REMOVING AND INSTALLING .
Nut
- 20 Nm
- Only remove if the transmission mount must be separated from the transmission support
Transmission Support
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Bolt
- 40 Nm
Transmission Mount
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Stop
- For the transmission mount
Bolt
- 20 Nm + 90°
- Always replace
- Only remove if the transmission mount must be separated from the transmission support
Nut
- 20 Nm
